Toyota Yaris: Differential Oil Seal (for Rh Side) / Replacement

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Drivetrain / Ea67f (manual Transmission / Transaxle) / Differential Oil Seal (for Rh Side) / Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transaxle case oil seal and front dirve shaft oil seal RH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Front wheel alignment adjustment

ECU Data Initialization

Active torque split AWD system

Calibration

  • DTCs are stored
  • Slip indicator light illuminates
  • VSC disabled or malfunctions

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Lane tracing assist system

    Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.

    Pre-collision system

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE TRANSFER ASSEMBLY

Click here

2. REMOVE DRIVE SHAFT BEARING BRACKET

Click here

3. REMOVE TRANSAXLE CASE OIL SEAL

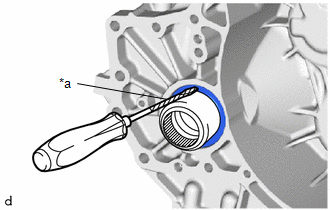

(a) Using a screwdriver with its tip wrapped with protective tape, remove the transaxle case oil seal from the front transaxle case.

NOTICE:

Do not damage the front transaxle case.

*a

Protective Tape

4. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

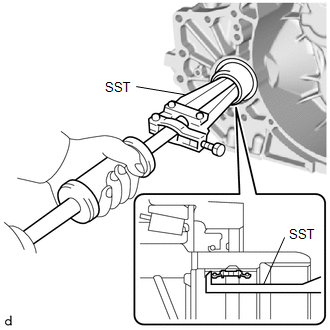

(a) Using SST, remove the front drive shaft oil seal RH from front differential case.

SST: 09308-00010

NOTICE:

Do not damage the front differential case.

5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

(a) Coat the lip of a new front drive shaft oil seal RH with MP grease.

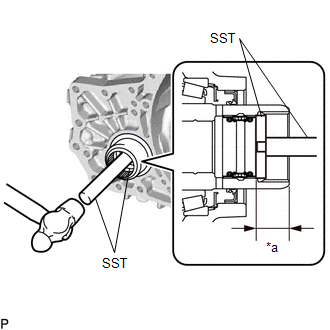

(b) Using SST and a hammer, install the front drive shaft oil seal RH to the front differential case.

SST: 09950-60011

09951-00410

SST: 09950-70010

09951-07200

Standard depth:

23.9 to 24.9 mm (0.941 to 0.980 in.)

NOTICE:

Do not damage the front drive shaft oil seal RH lip.

*a

23.9 to 24.9 mm (0.941 to 0.980 in.)

6. INSTALL TRANSAXLE CASE OIL SEAL

(a) Coat the lip of a new transaxle case oil seal with MP grease.

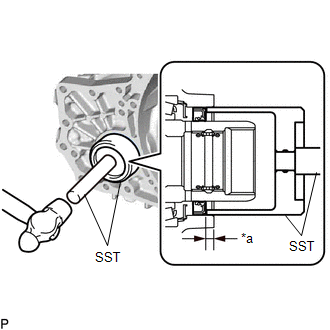

(b) Using SST and a hammer, install the transaxle case oil seal to the front transaxle case.

SST: 09649-17010

SST: 09950-70010

09951-07200

Standard depth:

5.0 to 6.0 mm (0.197 to 0.236 in.)

NOTICE:

Do not damage the transaxle case oil seal lip.

*a

5.0 to 6.0 mm (0.197 to 0.236 in.)

7. INSTALL DRIVE SHAFT BEARING BRACKET

Click here

8. INSTALL TRANSFER ASSEMBLY

Click here

    Components

    COMPONENTS ILLUSTRATION *1 DRIVE SHAFT BEARING BRACKET *2 FRONT DRIVE SHAFT OIL SEAL RH *3 TRANSAXLE CASE OIL SEAL *4 MANUAL TRANSAXLE ASSEMBLY Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft...
