Toyota Yaris: Differential Oil Seal (for Rh Side) / Components
COMPONENTS

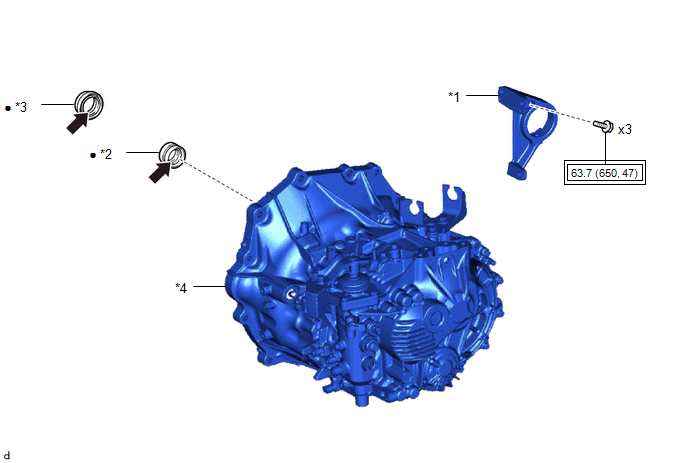

ILLUSTRATION
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT OIL SEAL RH |
| *3 | TRANSAXLE CASE OIL SEAL | *4 | MANUAL TRANSAXLE ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| MP grease | - | - |
REPLACEMENT CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transaxle case oil seal and front dirve shaft oil seal RH removal/installation are shown below...
