Toyota Yaris: Seat Heater Switch / Removal
REMOVAL
PROCEDURE
1. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY
Click here
2. REMOVE SEAT HEATER SWITCH

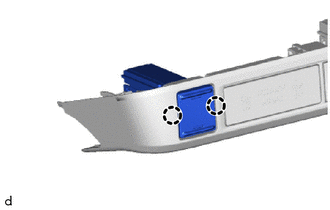

(a) Disengage claws to remove the seat heater switch HINT: Use the same procedures for the opposite side. | |
