DESCRIPTION

When the ignition switch is ON, the multiplex network master switch assembly sends remote up and down signals to each door window regulator motor assembly via LIN communication.

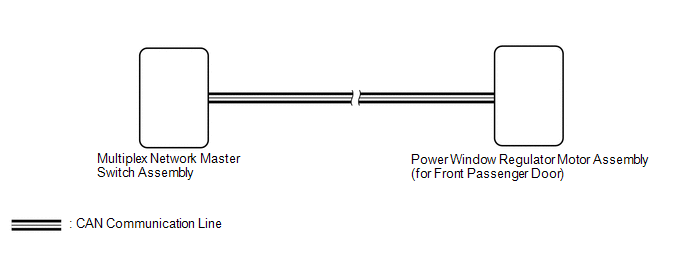

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

    Click here

  • If a power window regulator motor assembly has been replaced with a new one, initialize the power window control system.

    Click here

PROCEDURE

1.

READ VALUE USING GTS (MAIN BODY)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Communication P-Door Motor

Connection status between power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU)

STOP or OK

STOP: Communication stopped

OK: Normal communication

-

Communication Master Switch

Connection status between multiplex network master switch assembly and main body ECU (multiplex network body ECU)

STOP or OK

STOP: Communication stopped

OK: Normal communication

-

Body Electrical > Main Body > Data List

Tester Display

Communication P-Door Motor

Communication Master Switch

OK:

OK is displayed for each Data List item above.

NG

GO TO LIN COMMUNICATION SYSTEM (Proceed to How to Proceed with Troubleshooting)

OK

2.

READ VALUE USING GTS (MASTER SWITCH)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Master Switch > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

P Door P/W Auto SW

Front passenger door power window auto switch signal

OFF or ON

OFF: Front passenger door power window auto up or auto down switch not being operated

ON: Front passenger door power window auto up or auto down switch being operated

-

P Door P/W Up SW

Front passenger door power window manual up switch signal

OFF or ON

OFF: Front passenger door power window manual up switch not being operated

ON: Front passenger door power window manual up switch being operated

-

P Door P/W Down SW

Front passenger door power window manual down switch signal

OFF or ON

OFF: Front passenger door power window manual down switch not being operated

ON: Front passenger door power window manual down switch being operated

-

Window Lock Switch Status

Window lock switch signal

OFF or ON

OFF: Window lock switch off (not pushed in)

ON: Window lock switch on (pushed in)

-

Body Electrical > Master Switch > Data List

Tester Display

P Door P/W Auto SW

P Door P/W Up SW

P Door P/W Down SW

Window Lock Switch Status

OK:

On the GTS screen, ON or OFF is displayed accordingly.

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)

NG

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
