Toyota Yaris: Meter / Gauge System / Parts Location
PARTS LOCATION

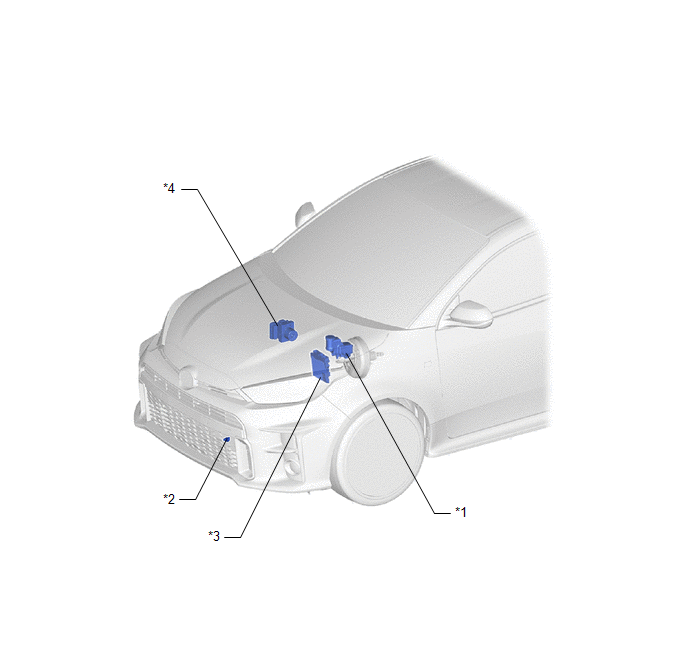

ILLUSTRATION
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH | *2 | THERMISTOR ASSEMBLY |
| *3 | ECM | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |

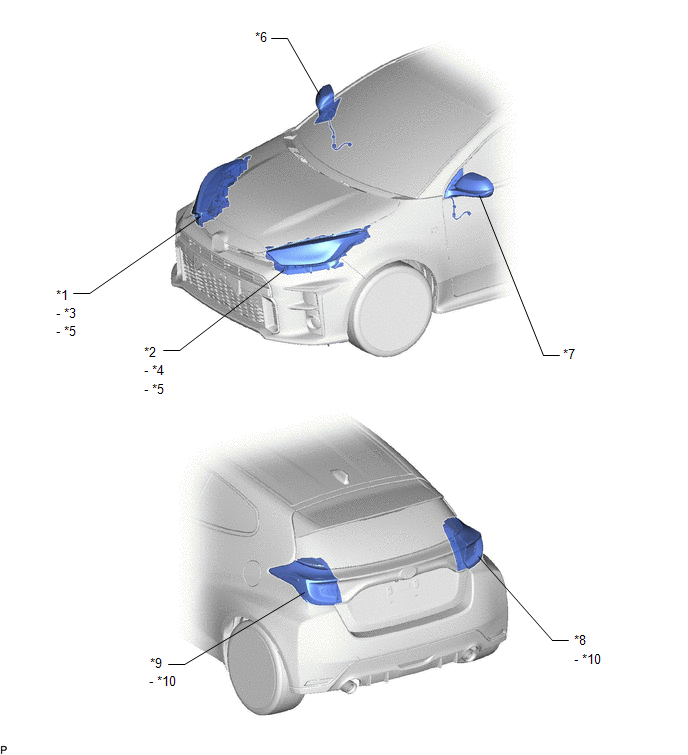

ILLUSTRATION
| *1 | HEADLIGHT ASSEMBLY RH | *2 | HEADLIGHT ASSEMBLY LH |
| *3 | HEADLIGHT UNIT ASSEMBLY RH | *4 | HEADLIGHT UNIT ASSEMBLY LH |
| *5 | HEADLIGHT CORD | *6 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *9 | REAR COMBINATION LIGHT ASSEMBLY LH | *10 | REAR TURN SIGNAL LIGHT LED |
ILLUSTRATION

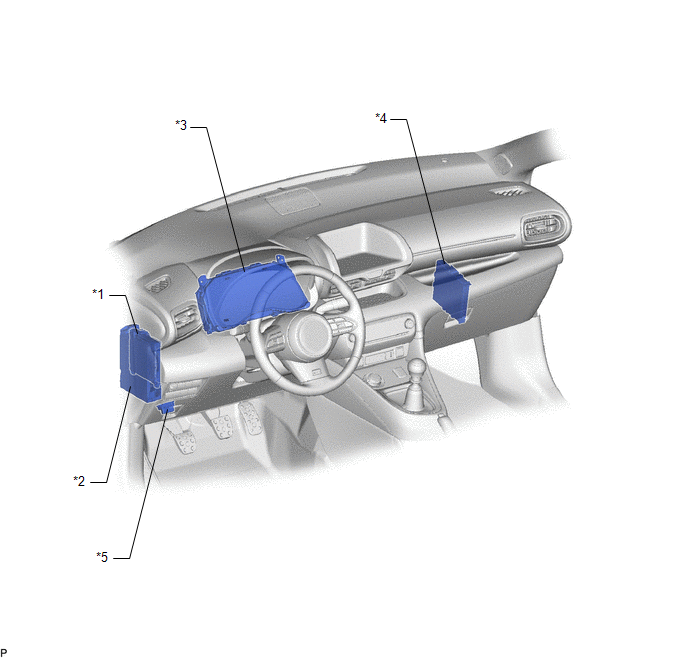

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 2 FUSE - HAZ FUSE |
| *3 | COMBINATION METER ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | DLC3 | - | - |

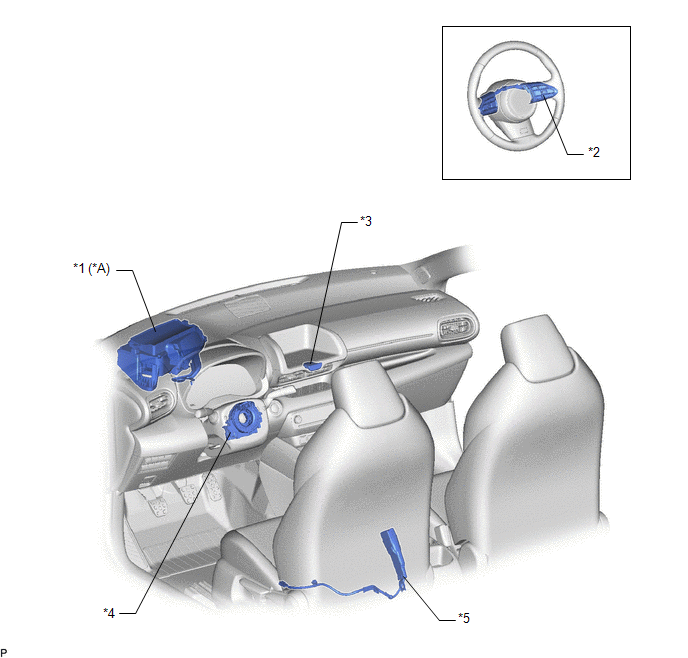

ILLUSTRATION
| *A | w/ Headup Display System | - | - |
| *1 | METER MIRROR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *4 | SPIRAL CABLE SUB-ASSEMBLY |
| *5 | FRONT SEAT INNER BELT ASSEMBLY LH | - | - |

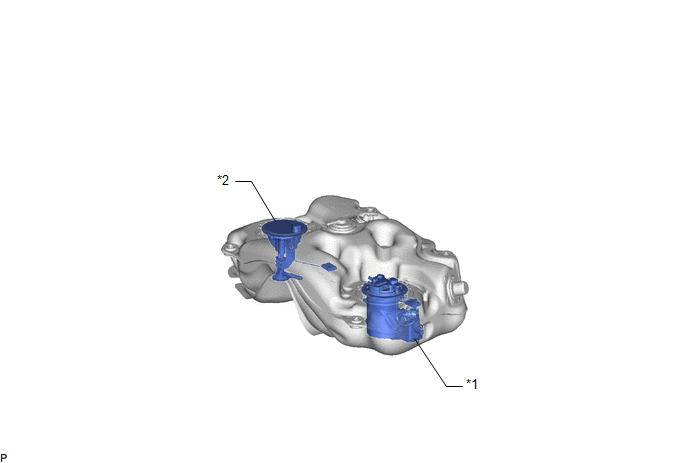

ILLUSTRATION
| *1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY | *2 | FUEL TANK VENT TUBE ASSEMBLY - NO. 2 FUEL SENDER GAUGE ASSEMBLY |
Precaution
PRECAUTION PRECAUTION FOR REPLACING COMBINATION METER ASSEMBLY When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored...
