Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

HINT:

Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Parking Brake System

Symptom

Suspected Area

Link

Brake drag

Parking brake lever travel (Out of adjustment)

Parking brake cable (Sticking)

Parking brake shoe clearance (Out of adjustment)

Parking brake shoe lining (Cracked or distorted)

Tension or return spring (Damaged)

Adjustment

ADJUSTMENT

PROCEDURE

1. ADJUST PARKING BRAKE SHOE CLEARANCE

(a) Remove the rear wheels.

Click here

(b) Temporarily install the hub nuts.

HINT:

Secure the rear disc with the hub nuts.

(c) Remove the parking brake shoe adjusting hole plug.

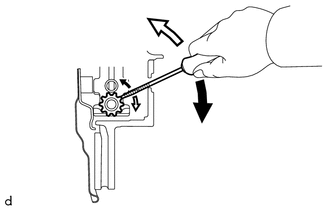

(d) Turn the parking brake shoe adjuster and expand the shoes until the rear disc locks.

Expand

Contract

(e) Turn and contract the parking brake shoe adjuster until the rear disc can rotate smoothly.

Standard:

Returns 8 notches

(f) Check whether the parking brake drags or not.

(g) Install the parking brake shoe adjusting hole plug.

(h) Remove the hub nuts.

(i) Install the rear wheels.

Click here

2. INSPECT PARKING BRAKE LEVER TRAVEL

(a) Pull the parking brake lever to fully engage the parking brake.

(b) Release the parking brake lever to disengage the parking brake.

(c) Slowly pull the parking brake lever using the specified force, and count the number of clicks.

Parking Brake Lever Travel at 200 N (20 kgf, 45.0 lbf):

5 to 8 clicks

If the parking brake lever travel is not as specified, adjust the parking brake lever travel.

3. ADJUST PARKING BRAKE LEVER TRAVEL

(a) Remove the console rear end panel sub-assembly.

Click here

(b) Completely release the parking brake lever.

(c) Turn the No. 1 wire adjusting nut until the parking brake lever travel is corrected to within the specified range.

Parking brake lever travel at 200 N (20 kgf, 45.0 lbf):

5 to 8 clicks

NOTICE:

If the No. 1 wire adjusting nut has been removed from the rod, replace it with a new one.

*1

No. 1 Wire Adjusting Nut

(d) Operate the parking brake lever 3 to 4 times, and check the parking brake lever travel.

(e) Check whether the parking brake drags or not.

(f) Install the console rear end panel sub-assembly.

Click here

4. INSPECT PARKING BRAKE WARNING LIGHT

(a) When operating the parking brake lever, check that the parking brake warning light illuminates.

Standard:

Parking brake warning light always illuminates at the first click.
