Toyota Yaris: G16e-gts (lubrication) / Oil And Oil Filter
Components
COMPONENTS

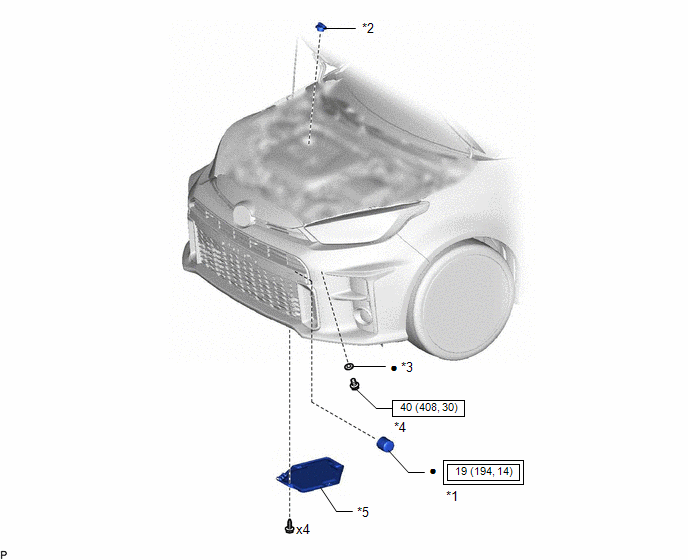

ILLUSTRATION
| *1 | OIL FILTER SUB-ASSEMBLY | *2 | OIL FILLER CAP SUB-ASSEMBLY |
| *3 | GASKET | *4 | OIL PAN DRAIN PLUG |
| *5 | REAR ENGINE UNDER COVER RH | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
Click here
Lubrication System
On-vehicle InspectionON-VEHICLE INSPECTION PROCEDURE 1. CHECK ENGINE OIL LEVEL (a) Warm up and stop the engine, then wait for 5 minutes. (b) Check that the engine oil level is between the low level and full level marks on the engine oil level dipstick...
