Toyota Yaris: Interior Equipment / Interior Lights

Toyota Yaris XP210 (2020-2022) Owner's Manual / Interior Features / Interior Equipment / Interior Lights

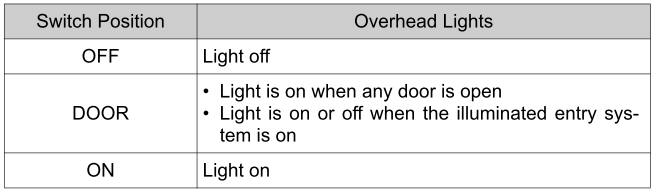

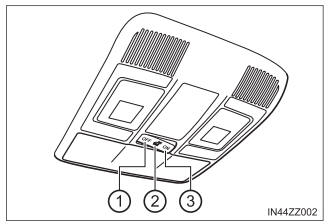

Overhead Lights

Toyota Yaris. Interior Lights

  1. OFF
  2. DOOR
  3. ON

Toyota Yaris. Interior Lights

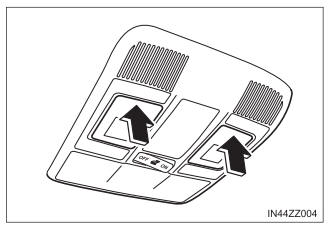

Map Lights

When the overhead light switch is in the door or off position, press the lens to illuminate the map lights, and then press the lens again to turn them off.

Toyota Yaris. Interior Lights

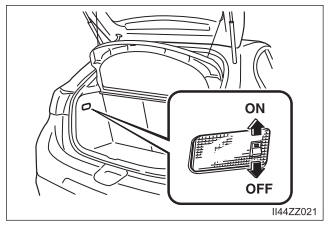

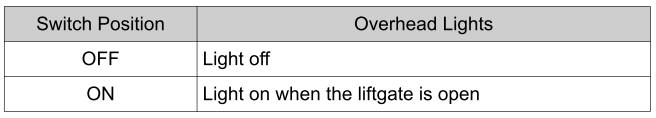

Luggage Compartment Lights (5-Door)

Toyota Yaris. Interior Lights

Toyota Yaris. Interior Lights

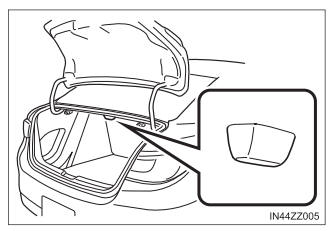

Trunk Light (4-Door)

The trunk light is on when the lid is open and off when it’s closed.

Toyota Yaris. Interior Lights

Map Lights

The map lights will not turn off even if the lens is pressed in the following cases:

  • The overhead light switch is in the ON position.
  • The overhead light switch is in the door position with the door open.
  • The illuminated entry system is on.

NOTICE

Overhead Lights and Map Lights

Do not leave the lights on for long periods while the engine is turned off. Otherwise, the battery power could be depleted.

Trunk Light

To prevent the battery from being discharged, do not leave the trunk open for a long period when the engine is not running.

Illuminated Entry System

The overhead lights turn on when any of the following operations is done with the overhead light switch in the DOOR position and the ignition switched off.

  • Turn on for about 30 seconds when the driver’s door is unlocked.
  • Turn on for about 15 seconds when a door is opened with a key left in the vehicle and then the door is closed.
  • Turn on for about 5 seconds when a door is opened from the outside with a key being carried and then the door is closed.

The overhead lights turn on for about 15 seconds when the ignition is switched off with the overhead light switch in the DOOR position.

The overhead lights turn off immediately in the following cases:

  • The ignition is switched on and all doors are closed.
  • The driver’s door is locked.



  • Battery saver

    If any door is left open with the overhead light switch in the DOOR position, or the trunk lid is left open, the overhead light or trunk light turns off after about 30 minutes to prevent battery depletion.

  • To prevent battery depletion, if the interior lights remain turned on (the interior light switch is in the ON position or an interior light is turned on by pressing the lens of the interior light), they turn off automatically under the following conditions:
    • No operations are done for about 30 minutes after the ignition is switched off.
    • When the LOCK button on the key is pressed after the ignition is switched off (interior lights turn off a few seconds).

    In addition, if the following operations are performed after turning the interior lights off, they will turn on again.

    • The ignition is switched to a position other than OFF.
    • A door is opened.
    • A door is unlocked.
  • The operation of the illuminated entry system can be changed. Refer to Customizable Features.
