INSTALLATION

PROCEDURE

1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

(a) Turn the steering wheel assembly to the right.

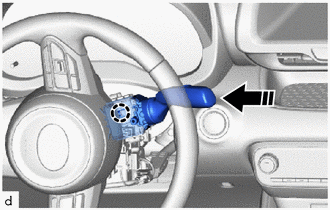

(b) Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

Install in this Direction

2. INSTALL UPPER STEERING COLUMN COVER

(a) Turn the steering wheel assembly to the straight.

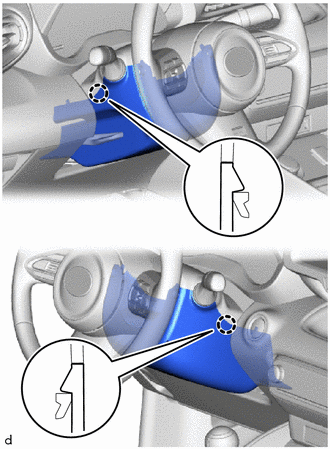

(b) Engage the claw to install the upper steering column cover.

3. INSTALL LOWER STEERING COLUMN COVER

NOTICE:

If the lower steering column cover is installed in the incorrect order, the parts may break.

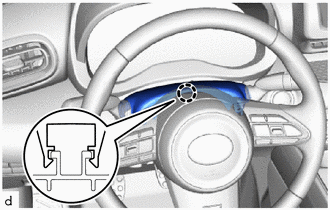

(a) Engage the claws to install the lower steering column cover.

(b) Install the screw.

(c) Turn the steering wheel assembly to the left to install the screw.

(d) Turn the steering wheel assembly to the right to install the screw.

    Inspection

    INSPECTION PROCEDURE 1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
