Toyota Yaris: Front Evaporator Temperature Sensor / Inspection

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Interior / Heating / Air Conditioning / Front Evaporator Temperature Sensor / Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 COOLER THERMISTOR

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

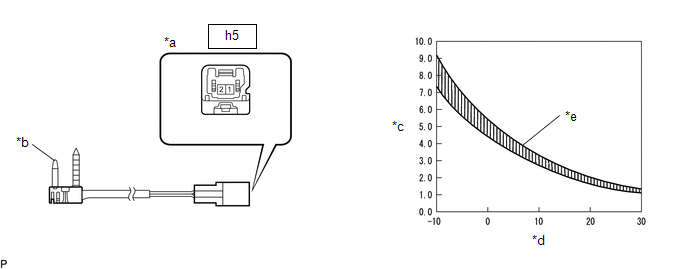

Component without harness connected

(No. 1 Cooler Thermistor)

Sensing Portion

Resistance (kΩ)

Temperature (°C (°F))

Allowable Range

Standard Resistance:

Tester Connection	Condition	Specified Condition
h5-1 - h5-2	-10°C (14°F)	7.30 to 9.10 kΩ
h5-1 - h5-2	-5°C (23°F)	5.65 to 6.95 kΩ
h5-1 - h5-2	0°C (32°F)	4.40 to 5.35 kΩ
h5-1 - h5-2	5°C (41°F)	3.40 to 4.15 kΩ
h5-1 - h5-2	10°C (50°F)	2.70 to 3.25 kΩ
h5-1 - h5-2	15°C (59°F)	2.14 to 2.58 kΩ
h5-1 - h5-2	20°C (68°F)	1.71 to 2.05 kΩ
h5-1 - h5-2	25°C (77°F)	1.38 to 1.64 kΩ
h5-1 - h5-2	30°C (86°F)	1.11 to 1.32 kΩ

NOTICE:

Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.
When measuring, the sensor temperature must be the same as the ambient temperature.

If the specified condition is not met, replace the No. 1 cooler thermistor.

Removal

REMOVAL PROCEDURE 1. REMOVE BLOWER ASSEMBLY Click here 2. REMOVE NO. 2 AIR DUCT Click here 3. REMOVE COOLER PIPE GROMMET Click here 4. REMOVE COOLER EXPANSION VALVE Click here 5...

Installation

INSTALLATION PROCEDURE 1. INSTALL NO. 1 COOLER THERMISTOR (a) Install the No. 1 cooler thermistor as shown in the illustration. Installation Position: Part Length A 45 to 55 mm (1...
