Toyota Yaris: Door / Hatch / Fuel Lid Lock Control Cable Assembly
Components
COMPONENTS

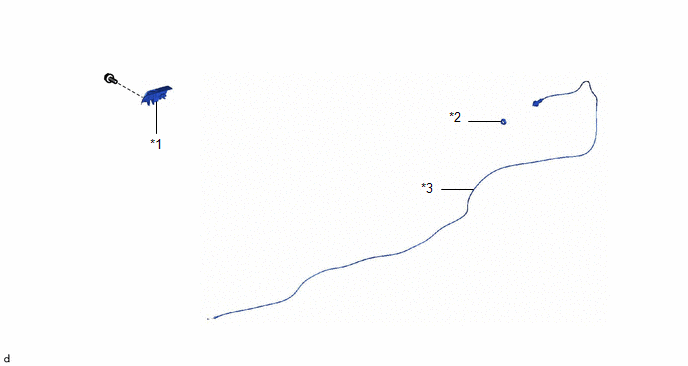

ILLUSTRATION
| *1 | FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY | *2 | FUEL FILLER OPENING LID LOCK RETAINER |
| *3 | FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT SEAT ASSEMBLY (for Driver Side)
Click here
.gif)
2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Click here
3. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

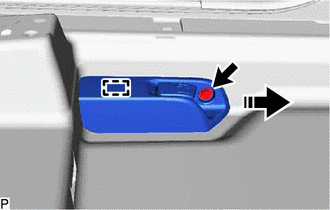

(a) Remove the screw.
.png) | Remove in this Direction |
(b) Disengage the guide to separate the fuel lid lock open lever sub-assembly as shown in the illustration.

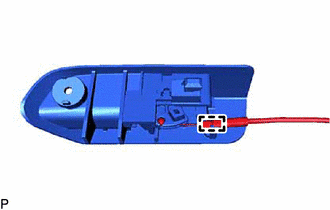

| (c) Disengage the guide to remove the fuel lid lock open lever sub-assembly from the fuel lid lock control cable assembly. |
|
4. REMOVE FUEL FILLER OPENING LID LOCK RETAINER
(a) Remove the fuel filler opening lid lock retainaer as shown in the illustration.
|
| Remove in this Direction (1) |
.png) | Remove in this Direction (2) |
5. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

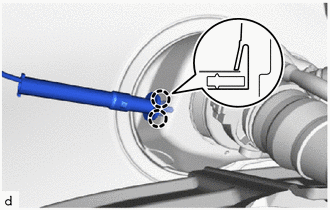

| (a) Disengage the claws to separate the fuel lid lock control cable sub-assembly. |
|

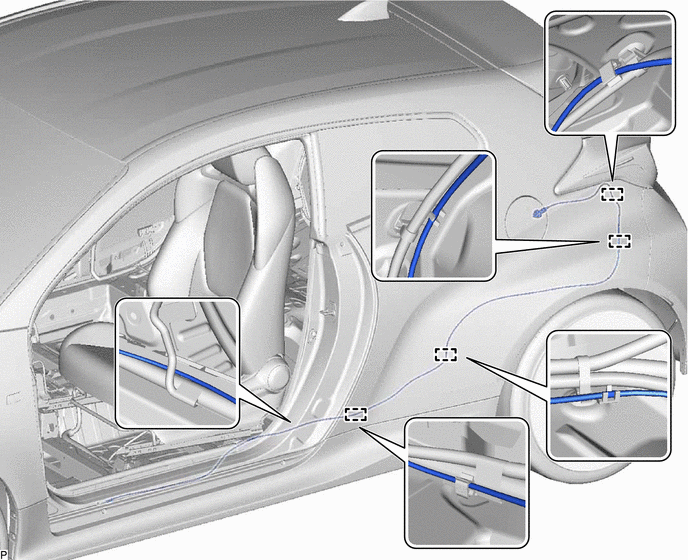

(b) Disengage the clamps to remove the fuel lid lock control cable sub-assembly.
Installation
INSTALLATION
PROCEDURE
1. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
(a) Engage the clamps to install the fuel lid lock control cable sub-assembly.
.png)
| (b) Engage the claws to install the fuel lid lock control cable sub-assembly. |
|
.png)
2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER
(a) Install the fuel filler opening lid lock retainaer as shown in the illustration.
.png) | Install in this Direction (1) |
.png) | Install in this Direction (2) |
3. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
| (a) Engage the guide to install the fuel lid lock open lever sub-assembly to the fuel lid lock control cable assembly. |
|
.png)
(b) Engage the guide to install the fuel lid lock open lever sub-assembly as shown in the illustration.
.png)
|
| Install in this Direction |
(c) Install the screw.
4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
Click here
.gif)
5. INSTALL FRONT SEAT ASSEMBLY (for Driver Side)
Click here
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.
PROCEDURE 1...
