Toyota Yaris. Fuel-Filler Cap

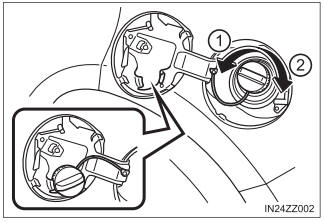

  1. Open

    To remove the fuel-filler cap, turn it counterclockwise. Attach the removed cap to the inner side of the fuel lid.

  2. Close

    To close the fuel-filler cap, turn it clockwise until a click is heard.

NOTICE

If the check fuel cap warning light illuminates, the fuel-filler cap may not be properly installed. If the warning light illuminates, park your vehicle safely off the right-of-way, remove the fuel-filler cap and reinstall it correctly. After the cap has been correctly installed, the fuel cap warning light may continue to illuminate until a number of driving cycles have been completed. A drive cycle consists of starting the engine (after four or more hours with the engine off) and driving the vehicle on city and highway roads.

Continuing to drive with the check fuel cap warning light illuminated could cause the check engine light to illuminate as well.

    Refueling

    Before refueling, close all the doors, windows, and the liftgate/trunk lid, and switch the ignition OFF. To open the fuel-filler lid, pull the remote fuel-filler lid release...
