Components

COMPONENTS

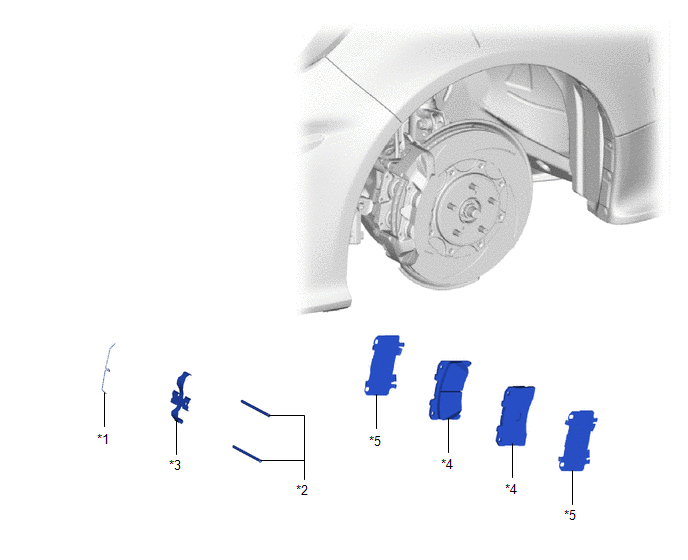

ILLUSTRATION

*1	FRONT DISC BRAKE PIN HOLD CLIP	*2	FRONT DISC BRAKE ANTI-RATTLE PIN
*3	FRONT DISC BRAKE ANTI-RATTLE SPRING	*4	FRONT DISC BRAKE PAD
*5	FRONT DISC BRAKE ANTI-SQUEAL SHIM	-	-

Front Brake Flexible Hose

ComponentsCOMPONENTS ILLUSTRATION *1 FRONT FLEXIBLE HOSE *2 GASKET *3 BRAKE LINE *4 FRONT SPEED SENSOR *5 UNION BOLT - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft...
