Toyota Yaris: Theft Deterrent / Keyless Entry / Electrical Key Oscillator (for Outside Luggage Compartment)

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Electrical Key Oscillator (for Outside Luggage Compartment)

Components

COMPONENTS

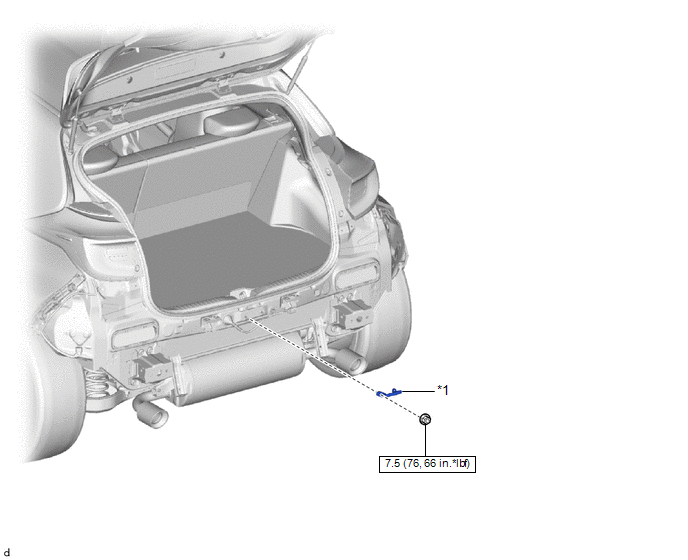

ILLUSTRATION

*1	ELECTRICAL KEY ANTENNA	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR BUMPER ASSEMBLY

Click here

2. REMOVE ELECTRICAL KEY ANTENNA

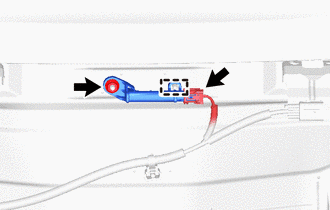

(a) Disconnect the connector.

(b) Remove the nut.

NOTICE:

Be careful when removing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.

Installation

INSTALLATION

PROCEDURE

1. INSTALL ELECTRICAL KEY ANTENNA

(a) Connect the connector.

(b) Engage the guide to install the electrical key antenna.

NOTICE:

Be careful when installing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

2. INSTALL REAR BUMPER ASSEMBLY

Click here
