Toyota Yaris: G16e-gts (engine Mechanical) / Drive Belt

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Engine & Hybrid System / G16e-gts (engine Mechanical) / Drive Belt

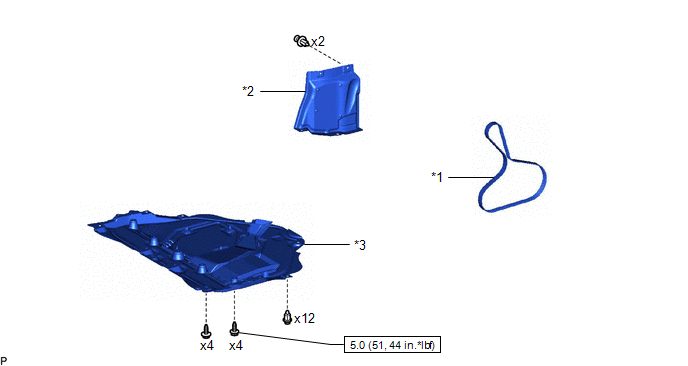

Components

COMPONENTS

ILLUSTRATION

Get a quote for windscreen replacement online *1	FAN AND GENERATOR V BELT	*2	ENGINE UNDER COVER RH
*3	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT FAN AND GENERATOR V BELT

(a) Check the fan and generator V belt for wear, cracks or other signs of damage.

If any of the following defects is found, replace the fan and generator V belt.

The fan and generator V belt is cracked.
The fan and generator V belt is worn out to the extent that the cords are exposed.
The fan and generator V belt has chunks missing from the ribs.

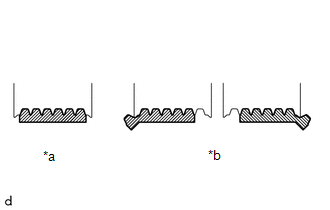

(b) Check that the fan and generator V belt fits properly in the ribbed grooves.

HINT:

Check with your hand to confirm that the fan and generator V belt has not slipped out of the grooves on the bottom of the pulley. If it has slipped out, replace the fan and generator V belt. Install a new fan and generator V belt correctly.

*a	Correct
*b	Incorrect

Installation

INSTALLATION CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts...
