DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR

Click here

2. REMOVE OUTER MIRROR COVER

Click here

3. REMOVE OUTER MIRROR LOWER COVER

(a) Remove the screw.

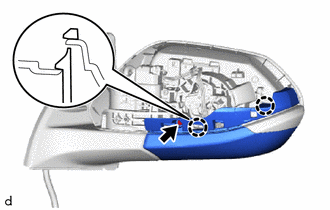

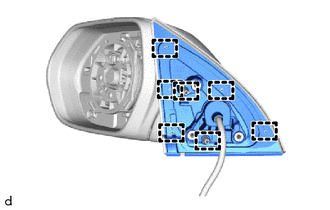

(b) Disengage the claws to remove the outer mirror lower cover.

4. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

Click here

5. REMOVE OUTER MIRROR HOLE COVER

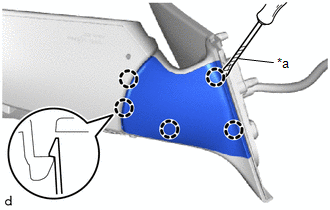

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the outer mirror hole cover.

*a

Protective Tape

6. REMOVE OUTER MIRROR RETRACTOR

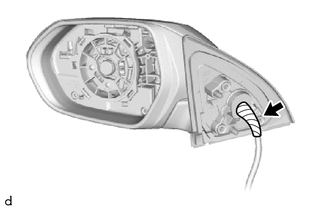

(a) Remove the vinyl tape.

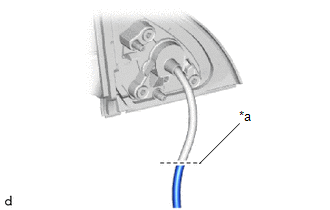

(b) Cut off the wire harness at the position as shown in the illustration.

*a

Cut

(c) Disengage the guides to remove the gasket.

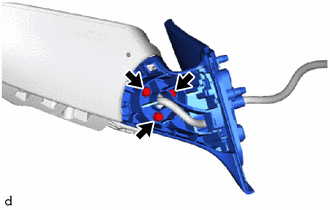

(d) Remove the 3 screws and base.

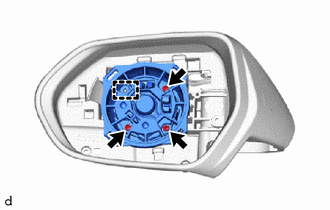

(e) Remove the 3 screws.

(f) Disengage the guide to remove the power unit assembly.

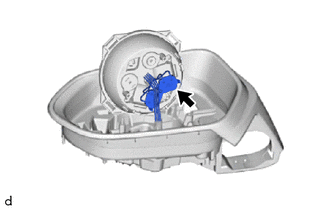

(g) Disconnect the connector.

(h) Remove the 3 screws and outer mirror retractor.

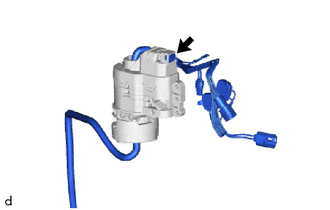

(i) Disconnect the connector to remove the wire harness from the outer mirror retractor.
