Toyota Yaris: Smart Key System (for Start Function) / Data List / Active Test
DATA LIST / ACTIVE TEST
DATA LIST
NOTICE:
- In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
- The steering lock ECU (steering lock actuator or upper bracket assembly) communicates with the GTS through the certification ECU (smart key ECU assembly) which uses CAN communication. If the CAN communication system or certification ECU (smart key ECU assembly) is malfunctioning, Data List items may not be normal.
- When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
HINT:
Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
(a) Read the Data List according to the display on the GTS.
Body Electrical > Power Source Control > Data List| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Total Distance Traveled | Total distance traveled | Min.: 0 Max.: 999999 | Actual total distance displayed | - |
| Total Distance Traveled - Unit | Total distance traveled unit | km or mile | - | - |
| Push Start Switch 1 | Engine switch 1 status | OFF or ON | OFF: Engine switch not pressed ON: Engine switch pressed |
|
| Push Start Switch 2 | Engine switch 2 status | OFF or ON | OFF: Engine switch not pressed ON: Engine switch pressed |
|
| Push Start Switch 3 | Engine switch 3 status | OFF or ON | OFF: Engine switch not pressed ON: Engine switch pressed |
|
| Steering Unlock Switch | State of steering unlock sensor signal output from steering lock ECU (steering lock actuator or upper bracket assembly) | OFF or ON | OFF: Steering locked ON: Steering unlocked |
|
| Neutral Switch / Clutch Switch | State of clutch pedal | OFF or ON | OFF: Clutch pedal released ON: Clutch pedal depressed |
|
| Engine Speed | Engine speed | 0 to 16383.75 rpm | Fluctuates in accordance with actual engine speed | - |
| IGP Relay Circuit (Outside) Monitor | IGP relay coil voltage monitor status | OFF or ON | OFF: Ignition switch off ON: Ignition switch ON |
|
| IGP Relay Circuit (Inside) Monitor | IGP relay activation | OFF or ON | OFF: Ignition switch off ON: Ignition switch ON |
|
| IGR Relay Circuit (Outside) Monitor | IGR relay coil voltage monitor status | OFF or ON | OFF: Ignition switch off ON: Ignition switch ON |
|
| IGR Relay Circuit (Inside) Monitor | IGR relay activation | OFF or ON | OFF: Ignition switch off ON: Ignition switch ON |
|
| IGP Hold Circuit Monitor | IGP relay hold monitor status | OFF or ON | OFF: Ignition switch off ON: Ignition switch ON | - |
| ACC Relay Monitor | ACC relay activation | OFF or ON | OFF: Ignition switch off ON: Ignition switch ACC | When the ignition switch is ON, ON is displayed. |
| Engine Driving Condition (Line) | Engine state | Stop or Driving | Stop: Engine stopped Run: Engine running | - |
| Vehicle Running Condition (Line) | Vehicle being driven or stopped | Stop or Driving | Stop: Vehicle stopped Driving: Vehicle being driven at 5 km/h (3 mph) or more | - |
| Power Supply Condition | Power supply state | OFF, ACC ON, IGR ON, IGP ON or Starter ON | OFF: Ignition switch off ACC ON: Ignition switch ACC IGR ON: Ignition switch ON IGP ON: Ignition switch ON Starter ON: Sending engine start request signal | - |
| Powertrain Type | Vehicle identification | Cnv-MT, Cnv-AT, Cnv-MMT, S&S-MT, S&S-AT, S&S-MMT, HV/FCHV-AT, PHV/EV-AT or 1Motor HV-AT | Cnv-MT: Conventional M/T model | - |
| Steering Lock - Unlock Time Out | Steering lock or unlock malfunction | Not Detected or Detected | Not Detected: Lock and unlock normal Detected: Lock or unlock malfunction (e.g. steering lock is stuck etc.) | When the engine cannot be started due to a steering lock or unlock malfunction, Detected is displayed. |
| Key Certification Time Out | Key verification malfunction | Not Detected or Detected | Not Detected: Verification normal Detected: Verification error (Detected due to the electrical key transmitter sub-assembly ID code and the ID code stored in the certification ECU (smart key ECU assembly) not matching) | When the engine cannot be started due to a key verification error, "Detected" is displayed. |
| IGR Relay Circuit (Outside) Malfunction | IGR relay coil circuit malfunction | Not Detected or Detected | Not Detected: Circuit normal Detected: Circuit malfunctioning |
|
| IGP Relay Circuit (Outside) Malfunction | IGP relay coil circuit malfunction | Not Detected or Detected | Not Detected: Circuit normal Detected: Circuit malfunctioning |
|
| Starter Relay Driving Request (Starting Control) | Engine start request signal status | OFF or ON | OFF: The engine switch is not pressed ON: With the clutch pedal depressed, the engine switch is pressed and held |
|
| Starter Relay | Starter relay voltage monitor | OFF or ON | OFF: ST relay off ON: ST relay on | When OFF is displayed the engine cannot be cranked. |
| Auto Power OFF Cancel Mode | Automatic power off cancel function | OFF or ON | OFF: Automatic power off not canceled ON: Automatic power off canceled | - |

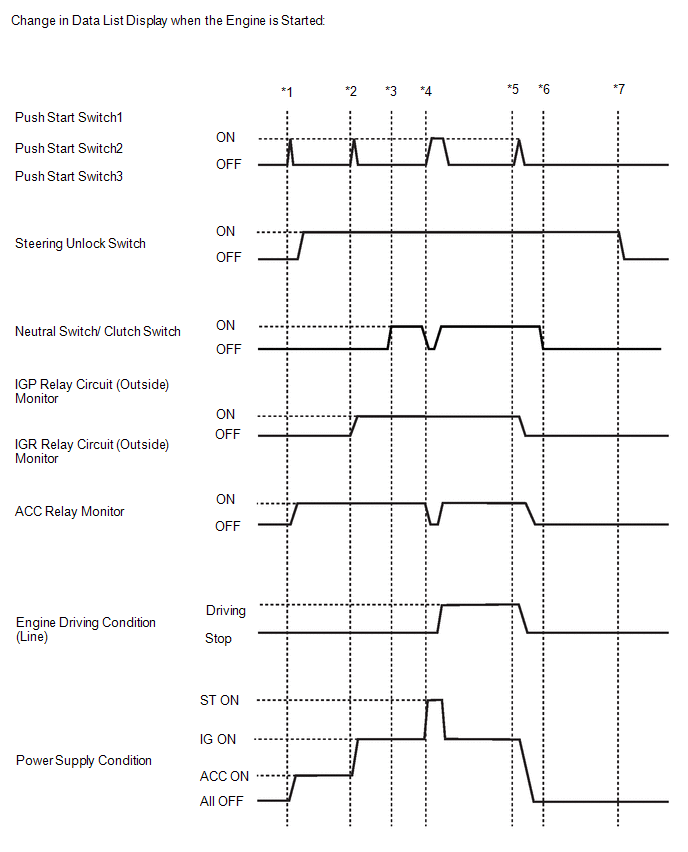

To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the ignition switch off and the shift lever in neutral. - *1: Without depressing the clutch pedal, press the engine switch and check that the power source mode turns ACC.
- *2: Without depressing the clutch pedal, press the engine switch and check that the power source mode turns ON.
- *3: Depress the clutch pedal (the clutch switch turns on).
- *4: With the clutch pedal depressed, press the engine switch and check that the engine starts.
- *5: Press the engine switch and check that the power source mode turns off.
- *6: Release the clutch pedal.
- *7: Open a door.
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Cut Fuse | Cut fuse installed | OFF or ON | OFF: Cut fuse not installed ON: Cut fuse installed | - |
| Electronic Key No Response | Communication response | No or Yes | No: Communication normal Yes: Communication malfunction | The vehicle IDs registered in the vehicle and electrical key transmitter sub-assembly match, but there is no response from the electrical key transmitter sub-assembly. (If the electrical key transmitter sub-assembly is not in the detection area or the transmitter battery is depleted resulting in a matching code not being detected when a lock switch or the engine switch is pressed, etc., "Yes" is displayed for "Electronic Key No Response" in the Data List. If there is wave interference in the LF band that the vehicle uses for transmission or the RF band that the electrical key transmitter sub-assembly uses for transmission, "Yes" may be displayed for "Electronic Key No Response" in the Data List.) Other potential causes:
|
| Key Low Battery | Transmitter battery depleted | No or Yes | No: Transmitter battery not depleted Yes: Transmitter battery depleted | The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is transmitting. "Yes" is displayed for the Data List item "Key Low Battery" when this voltage information indicates 2.2 V or less. This Data List item should be checked when the electrical key transmitter sub-assembly is at room temperature (example: at -20°C (-4°F), "Yes" may be displayed even if the transmitter battery is new). |
| B Code Difference | B code mismatch | No or Yes | No: Communication normal Yes: Communication malfunction | - |
| B Code Registered | B code registration status | No or Yes | No: B code not registered correctly Yes: B code registered correctly | - |
| Immobiliser | Immobiliser system status determined by certification ECU (smart key ECU assembly)*9 | Set or Unset | Set: Immobiliser set (engine start prohibited) (ignition switch off) Unset: Immobiliser unset (engine start permitted) (ignition switch ACC or ON) | The engine cannot be started when Set is displayed. HINT:
|
| Immobiliser when IG=ON | Immobiliser function status when ignition switch ON | Unset or Set | Unset: Immobiliser function not set with ignition switch ON or immobiliser function unset 40 times after immobiliser function set Set: Immobiliser function set (driver door opened and closed with ignition switch ON) | - |
| Master Key | Matching of master key ID code and ID code registered in certification ECU (smart key ECU assembly) | No or Yes | No: ID code of master key does not match ID code registered in certification ECU (smart key ECU assembly) Yes: ID code of master key matches ID code registered in certification ECU (smart key ECU assembly) | - |
| Sub Key | Matching of sub key ID code and ID code registered in certification ECU (smart key ECU assembly) | No or Yes | No: ID code of sub key does not match ID code registered in certification ECU (smart key ECU assembly) Yes: ID code of sub key matches ID code registered in certification ECU (smart key ECU assembly) | - |
| Encrypt Code Difference | Matching of transponder chip code and certification ECU (smart key ECU assembly) code*1 | No or Yes | No: Codes of transponder chip and certification ECU (smart key ECU assembly) match Yes: Codes of transponder chip and certification ECU (smart key ECU assembly) do not match | Problems may be caused by the following:
|
| Steering Lock Sleep Condition | Steering lock ECU sleep availability | No or Yes | No: Sleep not available Yes: Sleep available | - |
| Steering Lock Start Condition | Steering lock ECU wake up signal status | No or Yes | No: Wake up signal not sent Yes: Wake up signal sent | - |
| Steering Lock Data Fix | Steering lock ECU data fix status | No or Yes | No: Data not fix Yes: Date fixed | - |
| Start Condition | Status of engine start permission signal determined by steering lock ECU (steering lock actuator or upper bracket assembly) and sent to certification ECU (smart key ECU assembly)*2 | NG or OK | NG: Engine start prohibited OK: Engine start permitted |
|
| Sensor Malfunction History | History of malfunction of position sensor in steering lock ECU (steering lock actuator or upper bracket assembly) (DTC B278196 is stored) | OK or NG | OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) does not exist. NG: History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator or upper bracket assembly) being on exists. (Under normal operation, neither sensor is on.) | When NG is displayed, either the position sensor in the steering lock ECU (steering lock actuator or upper bracket assembly) or the assembly itself may be malfunctioning. |
| Power Supply Short History | History of signal error (short) sent from certification ECU (smart key ECU assembly) to steering lock ECU (steering lock actuator or upper bracket assembly) (DTC B278215 is stored) | OFF or ON | OFF: History of motor power source short does not exist ON: History of motor power source short exists | This item displays history of a malfunction in the circuit between the certification ECU (smart key ECU assembly) and the steering lock ECU (steering lock actuator or upper bracket assembly). |
| Motor Driver Short History | History of malfunction (short) in steering lock ECU (steering lock actuator or upper bracket assembly) motor circuit (DTC B278196 is stored) | OFF or ON | OFF: History of short in the motor circuit does not exist ON: History of short in the motor circuit exists | This item displays history of a malfunction in the steering lock motor circuit in the steering lock ECU (steering lock actuator or upper bracket assembly). |
| Lock/Unlock Receive History | History of receiving an unlock request signal | OFF or ON | OFF: History of receiving an unlock request signal does not exist ON: History of receiving an unlock request signal exists | - |
| Lock Bar Stuck Error History | History of steering not being able to unlock properly when steering lock operates for a certain period of time | OFF or ON | OFF: History of steering lock being stuck does not exist ON: History of steering lock being stuck exists | - |
| Data Access Error | Data access error status | OFF or ON | OFF: Steering lock ECU (steering lock actuator or upper bracket assembly) normal ON: Steering lock ECU (steering lock actuator or upper bracket assembly) abnormal | - |
| Open in IG2 History | History of IG2 input of the steering lock ECU (steering lock actuator or upper bracket assembly) | OFF or ON | OFF: History of open in IG2 terminal circuit exists ON: No history of open in IG2 terminal circuit exists | When OK is displayed, the steering lock ECU (steering lock actuator or upper bracket assembly) has an IG2 input circuit malfunction. |
| ID-BOX Sleep Condition | ID code box (immobiliser code ECU) sleep mode status*9 | No or Yes | No: ID code box (immobiliser code ECU) sleep mode not possible Yes: ID code box (immobiliser code ECU) sleep mode possible | - |
| ID-BOX Start Condition | ID code box (immobiliser code ECU) status*3 | No or Yes | No: Wake-up signal not sent by ID code box (immobiliser code ECU) Yes: Wake-up signal sent by ID code box (immobiliser code ECU) | - |
| EFI Code Receive | Certification information sent to ID code box (immobiliser code ECU) from ECM when ECM receives engine start permission signal from ID code box (immobiliser code ECU)*4, *9 | OK or NG | OK: Signal from ECM to unset immobiliser received by ID code box (immobiliser code ECU) NG: Signal from ECM to unset immobiliser not received by ID code box (immobiliser code ECU) | - |
| Start Request | Status of engine start permission signal determined by steering lock ECU (steering lock actuator or upper bracket assembly) and sent to certification ECU (smart key ECU assembly)*9 | OK or NG | OK: Signal received NG: Signal not received |
|
| 12bit Code Request Receive | 12-bit code request condition | OK or NG | OK: 12-bit code request condition signal received NG: 12-bit code request condition signal not received | - |
| S Code Check | Verification result between certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU)*5 | OK or NG | OK: Verification result normal NG: Verification result abnormal | When NG is displayed:
|
| L Code Check | Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly)*6 | OK or NG | OK: Verification result normal NG: Verification result abnormal | When NG is displayed:
|
| Steering Unlock Request Receive | Status of steering unlock command from certification ECU (smart key ECU assembly)*7, *9 | OK or NG | OK: Certification ECU (smart key ECU assembly) sends steering unlock command (within 10 seconds of ignition switch turned ACC or ON, or of engine start operation performed) NG: Certification ECU (smart key ECU assembly) does not send steering unlock command (ignition switch not turned ACC or ON, and engine start operation not performed) |
|
| Steering Lock Request Receive | Status of steering lock command from certification ECU (smart key ECU assembly)*8, *9 | OK or NG | OK: Certification ECU (smart key ECU assembly) sends steering lock command (within 10 seconds of any door opened with ignition switch off) NG: Certification ECU (smart key ECU assembly) does not send steering lock command (no door opened with ignition switch off) | If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning. |
| EFI Communication | State of communication to unset immobiliser between ID code box (immobiliser code ECU) and ECM | NG or OK | OK: Communication to unset immobiliser has started between ID code box (immobiliser code ECU) and ECM NG: Communication to unset immobiliser has not started between ID code box (immobiliser code ECU) and ECM | If this item displays "NG" even though the conditions to unset the immobiliser have been met and the value of Data List item "Engine Start Request" is "OK", the ECM may be malfunctioning. When the engine cannot be started, use this Data List item during troubleshooting. |
| S Code Check (Past) | Verification result history between the certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) | OK or NG | OK: History of abnormal verification result does not exist NG: History of abnormal verification result exists | - |
| L Code Check (Past) | Verification result history between the ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly) | OK or NG | OK: History of abnormal verification result does not exist NG: History of abnormal verification result exists | - |
| EFI Communication Code Status | Status of EFI communication code | OK or NG | OK: Signal from ECM was correct NG: Signal from ECM was incorrect | - |
| EFI Communication Status | Status of EFI communication | OK or NG | OK: Communication normal between ID code box (immobiliser code ECU) and ECM NG: Communication malfunction between ID code box (immobiliser code ECU) and ECM | - |
| EFI Communication Speed | Status of EFI communication speed | OK or NG | OK: Communication speed normal NG: Communication speed abnormal | - |
| ID-Box Wait Status | Wait status of ID code box (immobiliser code ECU) | Normal or Waiting | Normal: ID code box (immobiliser code ECU) not waiting Waiting: ID code box (immobiliser code ECU) waiting | - |
| S/L Code Registration Error History | Status of S/L code registration | OFF or ON | OFF: S/L code registration was completed normally ON: S/L code registration was not completed normally | - |
| Number of Registered Key Codes | Number of registered electrical key transmitter sub-assemblies | 0 to 4 | Number of registered electrical key transmitter sub-assemblies | Up to 4 electrical key transmitter sub-assemblies can be registered. |
| Ignition Available Area Setting (Back Door Type) | Ignition available area | Fr+Rr or Fr+Rr+BD | Customize setting displayed | - |
| Key Low Battery Warning Function | Low transmitter battery warning | OFF or ON | Customize setting displayed | - |
| Key Left in Vehicle Alarm Function | Key left in vehicle buzzer | OFF or ON | OFF or ON | - |
| Forget to Turn IG OFF Alarm Function | Forget to turn ignition switch off alarm | OFF or ON | Customize setting displayed | - |
| Start Indicator Function | Key indicator display | OFF or ON | Customize setting displayed | - |
| Start Switch Light Function | Engine switch light | OFF or ON | Customize setting displayed | - |
| Start SW Light Power Supply | Engine switch illumination power supply state | OFF or ON | OFF: Power supply is not on ON: Power supply is on | - |
| Immobiliser Indicator | Security indicator light state | OFF or ON | OFF: Security indicator light off ON: Security indicator light on | - |
HINT:
- *1: This indicates that there is a problem with the communication format between the electrical key transmitter sub-assembly and certification ECU (smart key ECU assembly). Wave interference, malfunction of the electrical key transmitter sub-assembly or certification ECU (smart key ECU assembly), an electrical key transmitter sub-assembly from different vehicle being used, etc. are possible causes.
- *2: Engine start is permitted when it is confirmed that the steering is unlocked and the steering lock function is not malfunctioning. If engine start is not permitted, a steering lock ECU (steering lock actuator or upper bracket assembly) malfunction (relay, driver, etc.), an IGE circuit malfunction (wire harness or connector, ID code box (immobiliser code ECU), or a steering lock sensor malfunction are possible causes.
- *3: This indicates that transmission of the wake-up signal is possible ("Yes" indicates that the signal to begin verification-related LIN communication is being sent). When the steering lock motor is operating and an IGE ON signal is received (there is a steering lock operation request), or when communication is being performed between the certification ECU (smart key ECU assembly) and ECM, the display changes to "Yes".
- *4: This indicates that the engine start permission request signal (EGST) output from the ECM is being received by the ID code box (immobiliser code ECU).
- *5: This indicates the certification result of the certification codes of the certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU).
-
*6: This indicates the certification result of the certification codes of the ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly).
When the steering lock ECU (steering lock actuator or upper bracket assembly) receives an unlock request from the certification ECU (smart key ECU assembly), confirmation of the ID code box (immobiliser code ECU) L code is performed. If the L code matches, the steering lock ECU (steering lock actuator or upper bracket assembly) unlocks the steering. Also, if the S code verification result does not match, the steering lock will not be unlocked.
- *7: The certification ECU (smart key ECU assembly) outputs a steering unlock request for 10 seconds after the ignition switch is turned ACC or ON, or an engine start operation is performed.
- *8: The certification ECU (smart key ECU assembly) outputs a steering lock request for 10 seconds after the ignition switch is turned off and any door is opened.
-

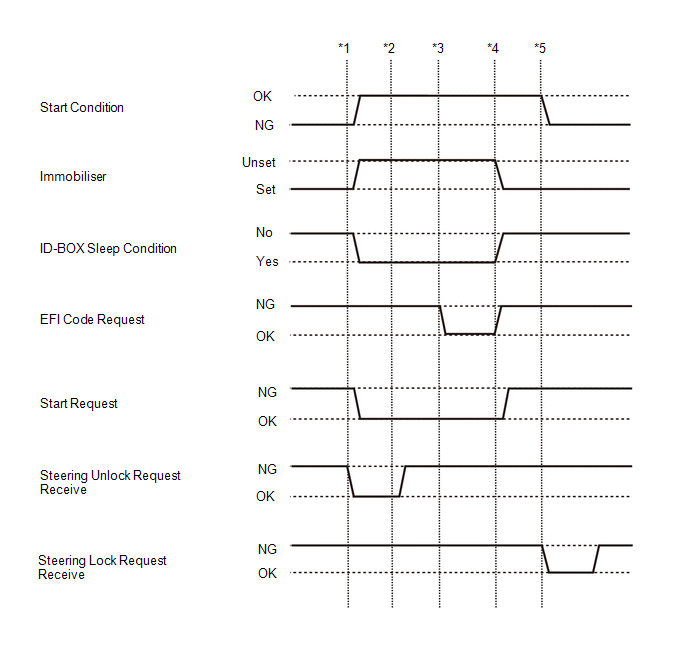

*9: Refer to the following Data List items when inspecting the actual vehicle.
-
HINT:
To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the ignition switch off.
- *1: Press the engine switch with the clutch pedal released and check that the ignition switch turns ACC.
- *2: Press the engine switch with the clutch pedal released and check that the ignition switch turns ON.
- *3: Press the engine switch with the clutch pedal released and check that the engine starts.
- *4: Press the engine switch and check that the ignition switch turns off.
- *5: Open the driver side door and check that the steering locks.
-
Unlock operation conditions for the steering lock:
When the following condition is met, the unlock operation is performed.
-
The ignition switch is ACC or ON.
- When the ignition switch is turned ACC or ON and the key and certification ECU (smart key ECU assembly) are verified, the steering is unlocked.
-
When any of the following conditions are met, key verification is performed.
- The clutch pedal is depressed so that the engine can be started.
- 30 seconds have elapsed after opening and closing a door.
- The engine switch is pressed.
-
The ignition switch is ACC or ON.
-
Lock operation conditions for the steering:
When the following conditions are met and the certification ECU (smart key ECU assembly) has been verified, the lock operation is performed.
- The ignition switch is off.
- A door is opened or a door lock operation (door lock, wireless door lock or key-linked lock) is performed.
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Vehicle Speed Meter | Vehicle speed | Min.: 0, Max.: 255 | Almost same as actual vehicle speed (Speedometer tester) | - |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| FR Door Courtesy Switch Status | Front door RH courtesy light switch signal | OFF or ON | OFF: Front door RH closed ON: Front door RH open | - |
| FL Door Courtesy Switch Status | Front door LH courtesy light switch signal | OFF or ON | OFF: Front door LH closed ON: Front door LH open | - |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Immobiliser Fuel Cut Status | Status of immobiliser fuel cut | OFF or ON | - | - |
ACTIVE TEST
HINT:
Using the GTS to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
(a) Perform Active Test according to the display on the GTS.
Body Electrical > Smart Key > Active Test| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Start SW Light Power Supply | Engine switch light | OFF/ON | - |
| Immobiliser Indicator | Security indicator light | OFF/ON | - |
Dtc Check / Clear
DTC CHECK / CLEAR NOTICE:
When DTC is output, be sure to confirm and record.
DTCs may have been stored due to problems unrelated to the steering lock function...
