Toyota Yaris: Radiator / Components
COMPONENTS

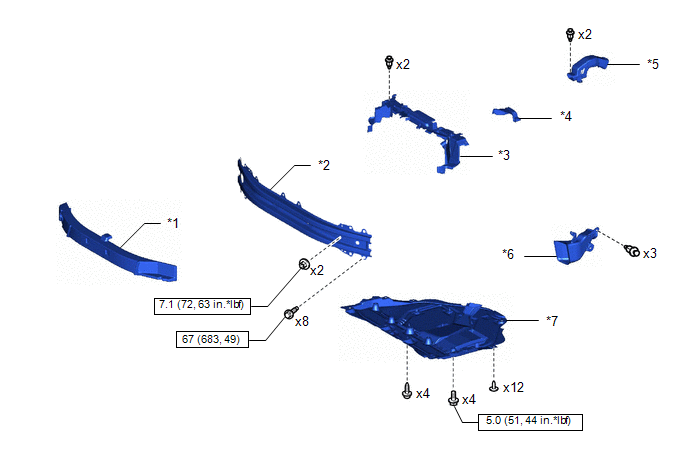

ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | RADIATOR UPPER AIR GUIDE PLATE | *4 | NO. 3 AIR CLEANER INLET |
| *5 | NO. 1 AIR CLEANER INLET | *6 | COOL AIR INTAKE DUCT |
| *7 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

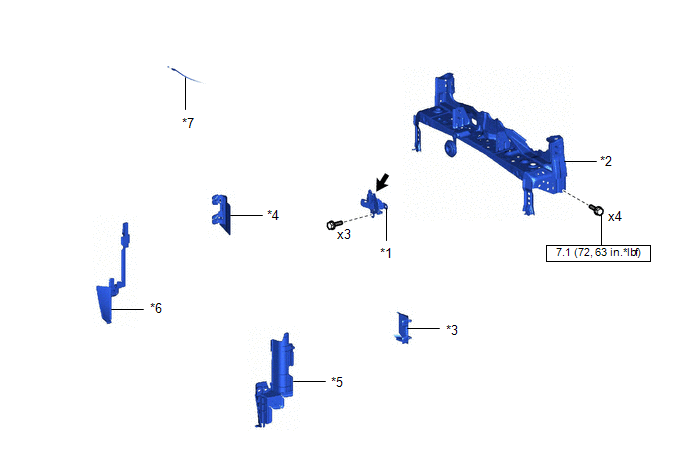

ILLUSTRATION
| *1 | HOOD LOCK ASSEMBLY | *2 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *3 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | *4 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH |
| *5 | NO. 1 RADIATOR AIR GUIDE LH | *6 | NO. 1 RADIATOR AIR GUIDE RH |
| *7 | HOOD LOCK CONTROL CABLE ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
 | MP grease |

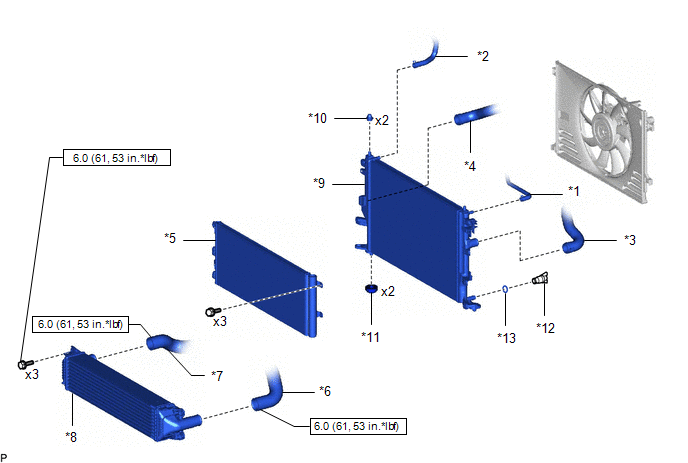

ILLUSTRATION
| *1 | WATER BY-PASS HOSE | *2 | NO. 3 WATER BY-PASS HOSE |
| *3 | NO. 1 RADIATOR HOSE | *4 | NO. 2 RADIATOR HOSE |
| *5 | COOLER CONDENSER ASSEMBLY | *6 | NO. 4 AIR HOSE |
| *7 | NO. 3 AIR HOSE | *8 | INTERCOOLER ASSEMBLY |
| *9 | RADIATOR ASSEMBLY | *10 | RADIATOR SUPPORT CUSHION |
| *11 | LOWER RADIATOR SUPPORT | *12 | RADIATOR DRAIN COCK PLUG |
| *13 | O-RING | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Radiator
..
On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT RESERVE TANK CAP CAUTION: Do not remove the reserve tank cap and air release valve while the engine and radiator assembly are still hot...
