COMPONENTS

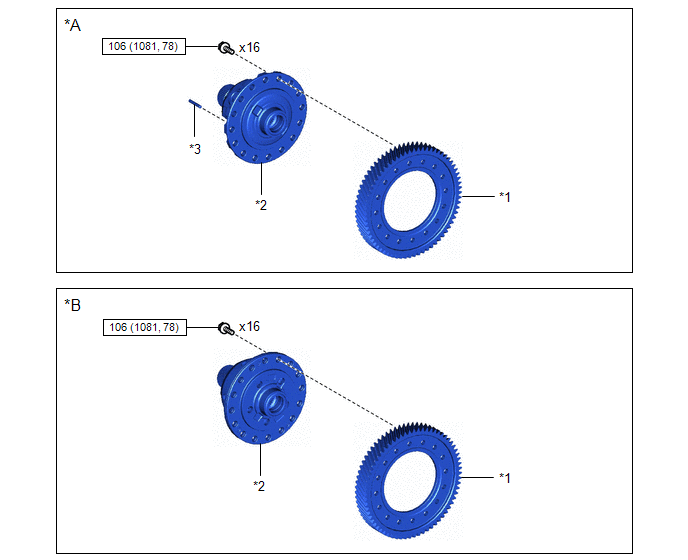

ILLUSTRATION

*A

w/o LSD

*B

w/ LSD

*1

FRONT DIFFERENTIAL RING GEAR

*2

FRONT NO. 1 DIFFERENTIAL CASE SUB-ASSEMBLY

*3

FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

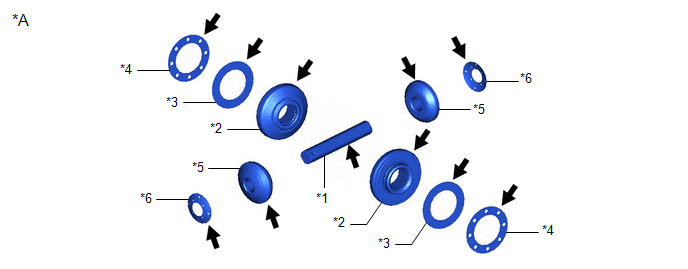

ILLUSTRATION

*A

w/o LSD

-

-

*1

FRONT NO. 1 DIFFERENTIAL PINION SHAFT

*2

FRONT DIFFERENTIAL SIDE GEAR

*3

CONICAL SPRING

*4

FRONT NO. 1 DIFFERENTIAL SIDE GEAR THRUST WASHER

*5

FRONT DIFFERENTIAL PINIONS

*6

FRONT DIFFERENTIAL PINIONS THRUST WASHER

Gear Oil

-

-

    Differential Case

    ..

    Disassembly

    DISASSEMBLY PROCEDURE 1. REMOVE FRONT DIFFERENTIAL RING GEAR (a) Mount the front differential ring gear in a vise between aluminum plates. NOTICE: Be careful not to damage the front differential ring gear...
