Toyota Yaris: Rear Drive Shaft Assembly / Components
COMPONENTS

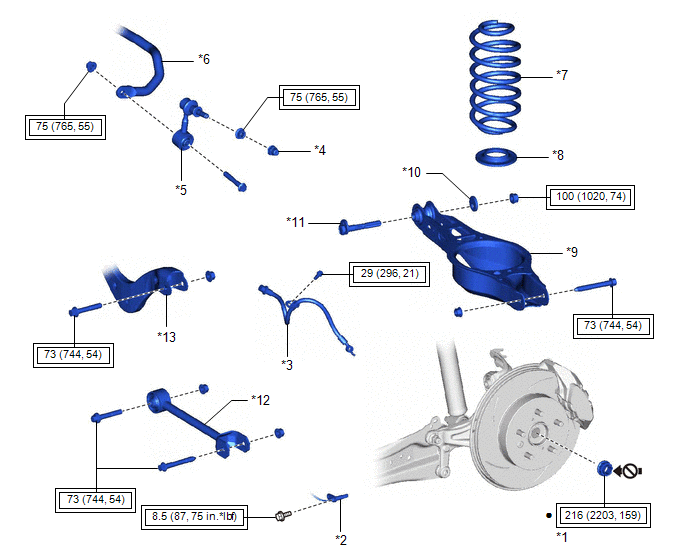

ILLUSTRATION
| *1 | REAR AXLE SHAFT NUT | *2 | REAR SPEED SENSOR |
| *3 | REAR FLEXIBLE HOSE | *4 | CAP |
| *5 | REAR STABILIZER LINK ASSEMBLY | *6 | REAR STABILIZER BAR |
| *7 | REAR COIL SPRING | *8 | REAR LOWER COIL SPRING INSULATOR |
| *9 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *10 | NO. 2 CAMBER ADJUST CAM |
| *11 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *12 | REAR NO. 1 SUSPENSION ARM ASSEMBLY |
| *13 | REAR UPPER CONTROL ARM ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | Do not apply lubricants to the threaded parts | - | - |

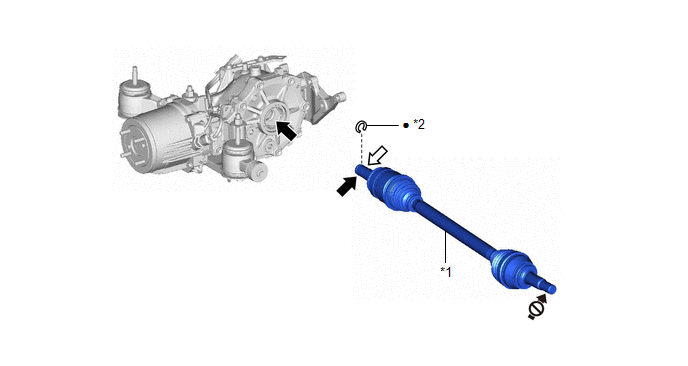

ILLUSTRATION
| *1 | REAR DRIVE SHAFT ASSEMBLY | *2 | REAR DRIVE SHAFT INBOARD JOINT SHAFT SNAP RING |
| ● | Non-reusable part |
 | MP grease |
 | Toyota genuine differential gear oil LX |
 | Do not apply lubricants to the threaded parts |

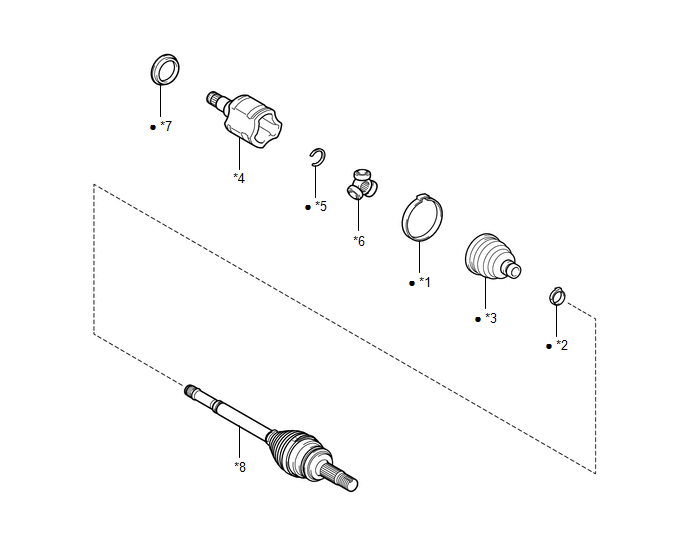

ILLUSTRATION
| *1 | REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP | *2 | REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP |
| *3 | REAR DRIVE SHAFT INBOARD JOINT BOOT | *4 | REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY |
| *5 | REAR DRIVE SHAFT SNAP RING | *6 | TRIPOD JOINT |
| *7 | REAR DRIVE SHAFT DUST COVER | *8 | REAR DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear drive shaft assembly removal/installation are shown below...
