Toyota Yaris: Rear Differential Carrier Oil Seal / Components
COMPONENTS

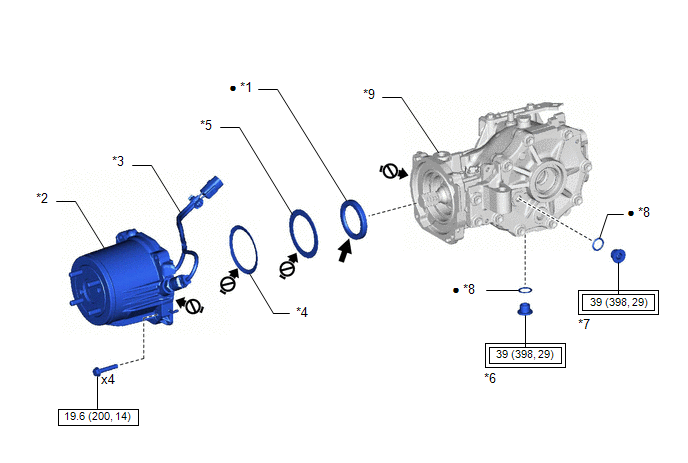

ILLUSTRATION
| *1 | DIAPHRAGM OIL SEAL | *2 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY |
| *3 | ELECTRO MAGNETIC CONTROL COUPLING WIRE HARNESS | *4 | TRANSMISSION COUPLING CONICAL SPRING WASHER |
| *5 | TRANSMISSION COUPLING SPACER | *6 | REAR DIFFERENTIAL DRAIN PLUG |
| *7 | REAR DIFFERENTIAL FILLER PLUG | *8 | GASKET |
| *9 | REAR DIFFERENTIAL CARRIER ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part |
 | MP grease |
 | Do not apply lubricants | - | - |
Replacement
REPLACEMENT CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during diaphragm oil seal replacement are shown below...
