COMPONENTS

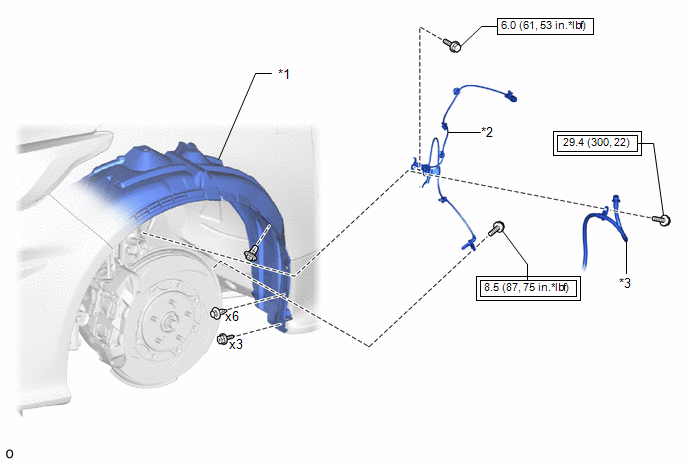

ILLUSTRATION

*1

FRONT FENDER LINER

*2

FRONT SPEED SENSOR

*3

FRONT FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

    Front Speed Sensor

    ..

    Installation

    INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. The front speed sensor rotor is a component of the front axle hub sub-assembly...
