Toyota Yaris: Brake Actuator / Components
COMPONENTS
ILLUSTRATION

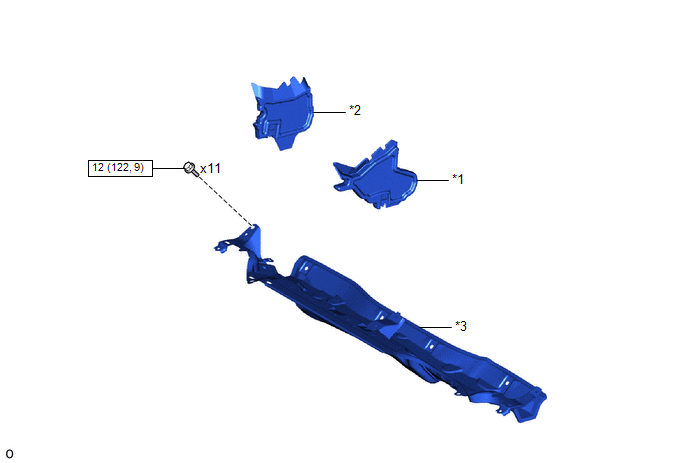

| *1 | FRONT NO. 1 VENTILATOR SEAL | *2 | WATER GUARD PLATE RH |
| *3 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

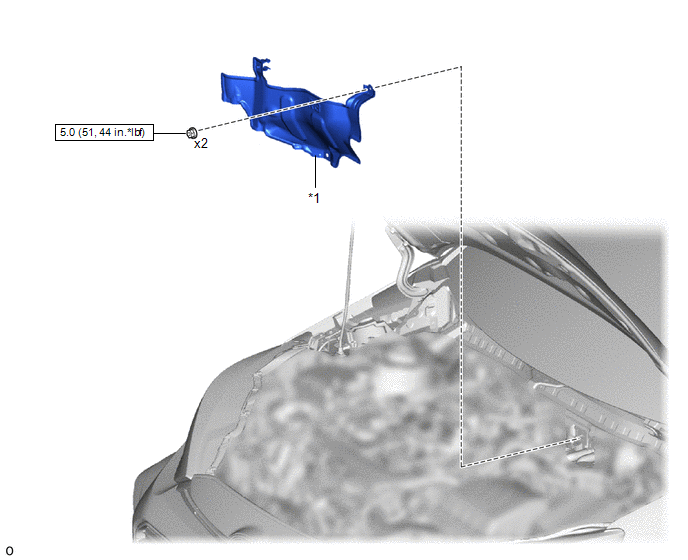

| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | DASH PANEL HEAT INSULATOR | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

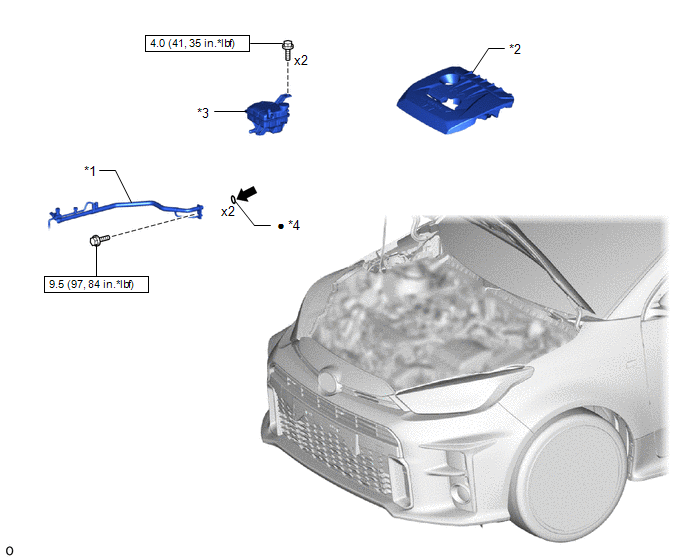

| *1 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | RESERVE SEALED TANK | *4 | O-RING |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | HFC-134a (R134a): Compressor oil ND-OIL 8 or equivalent | - | - |
ILLUSTRATION
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | CONNECTOR |
| *3 | BRAKE LINE | *4 | NO. 1 BRAKE TUBE CLAMP |
| *5 | NO. 2 BRAKE TUBE CLAMP | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |
| ● | Non-reusable part | - | - |
ILLUSTRATION

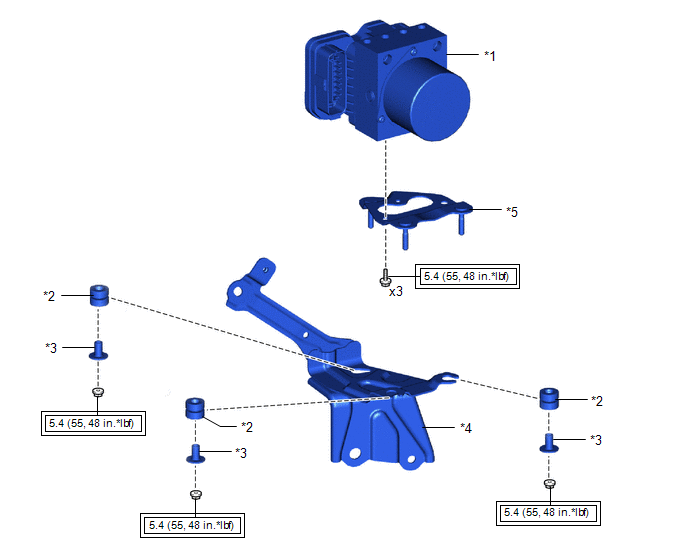

| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BRACKET CUSHION |
| *3 | NO. 1 BRAKE ACTUATOR CASE COLLAR | *4 | NO. 1 BRAKE ACTUATOR BRACKET |
| *5 | BRAKE ACTUATOR BRACKET ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. CONNECT GTS (a) Connect the GTS to the DLC3 with the engine switch off. (b) Start the engine and run it at idle. (c) Turn the GTS on...
