Toyota Yaris: Instrument Panel Safety Pad / Components
COMPONENTS

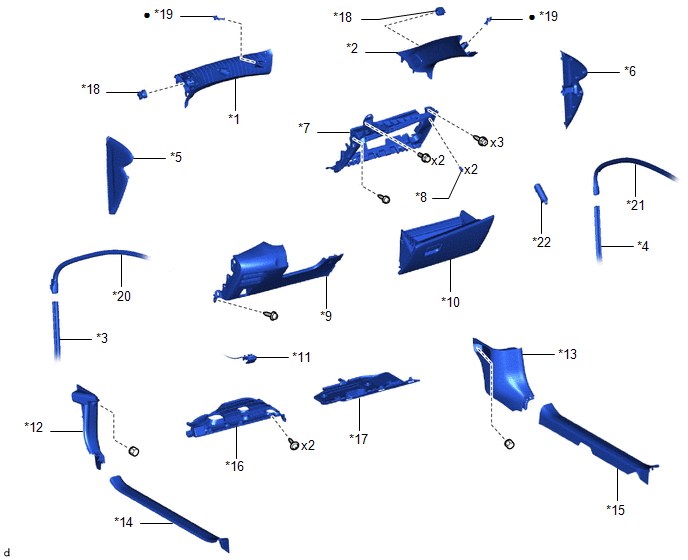

ILLUSTRATION
| *1 | FRONT PILLAR GARNISH LH | *2 | FRONT PILLAR GARNISH RH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | NO. 1 INSTRUMENT SIDE PANEL | *6 | NO. 2 INSTRUMENT SIDE PANEL |
| *7 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL | *8 | GLOVE COMPARTMENT DOOR CHECK CUSHION |
| *9 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *10 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *11 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *12 | COWL SIDE TRIM BOARD LH |
| *13 | COWL SIDE TRIM BOARD RH | *14 | FRONT DOOR SCUFF PLATE LH |
| *15 | FRONT DOOR SCUFF PLATE RH | *16 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *17 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *18 | FRONT NO. 2 SPEAKER ASSEMBLY |
| *19 | FRONT PILLAR GARNISH CLIP | *20 | NO. 1 ROOF HEADLINING MOULDING LH |
| *21 | NO. 1 ROOF HEADLINING MOULDING RH | *22 | GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY |
| ● | Non-reusable part | - | - |

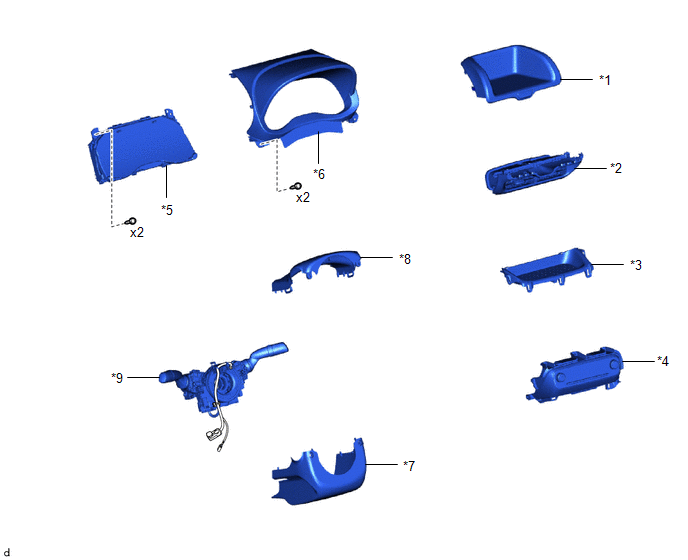

ILLUSTRATION
| *1 | INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY | *2 | INSTRUMENT PANEL CENTER REGISTER ASSEMBLY |
| *3 | INSTRUMENT PANEL CENTER TRAY | *4 | AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *7 | LOWER STEERING COLUMN COVER | *8 | UPPER STEERING COLUMN COVER |
| *9 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY | - | - |

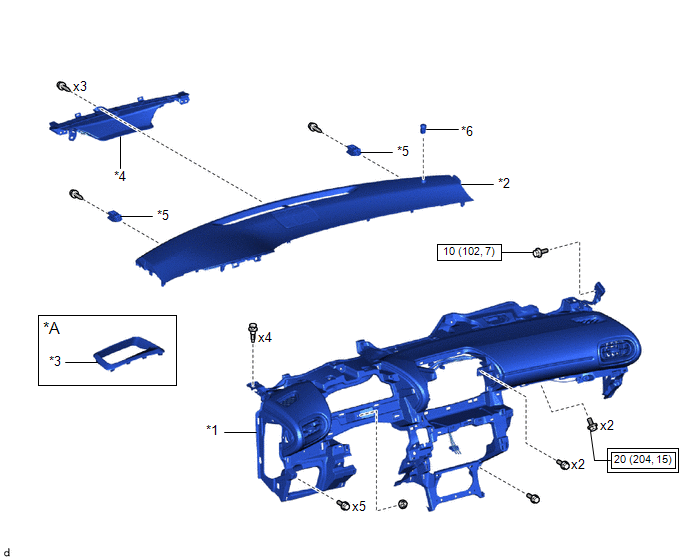

ILLUSTRATION
| *A | w/ Headup Display | - | - |
| *1 | INSTRUMENT PANEL SUB-ASSEMBLY | *2 | INSTRUMENT MAIN PANEL |
| *3 | INSTRUMENT CLUSTER FINISH END PANEL | *4 | DEFROSTER NOZZLE ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL PIN | *6 | AUTOMATIC LIGHT CONTROL SENSOR |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |

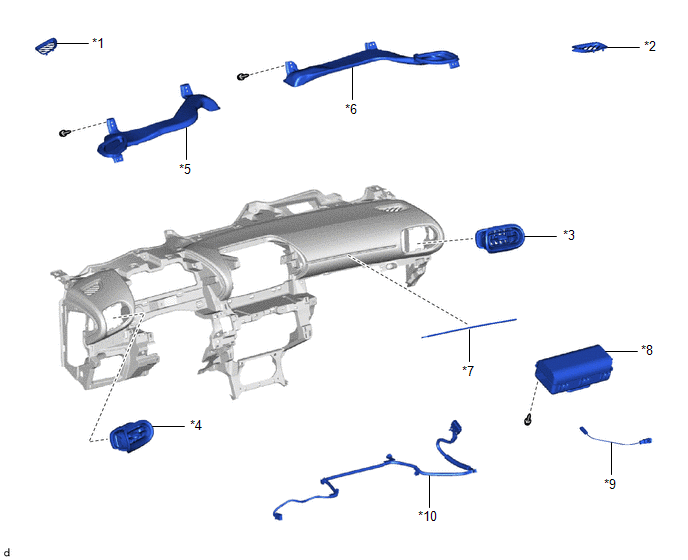

ILLUSTRATION
| *1 | NO. 1 SIDE DEFROSTER NOZZLE | *2 | NO. 2 SIDE DEFROSTER NOZZLE |
| *3 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *5 | NO. 1 SIDE DEFROSTER NOZZLE DUCT | *6 | NO. 2 SIDE DEFROSTER NOZZLE DUCT |
| *7 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT | *8 | INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY |
| *9 | NO. 2 INSTRUMENT PANEL WIRE | *10 | ANTENNA CORD SUB-ASSEMBLY |
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE NO. 1 SIDE DEFROSTER NOZZLE (a) Disengage the claws and guides to remove the No. 1 side defroster nozzle.
2...
