Toyota Yaris: Air Conditioning Unit / Components
COMPONENTS

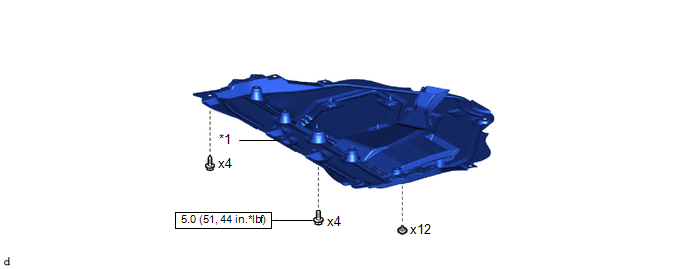

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

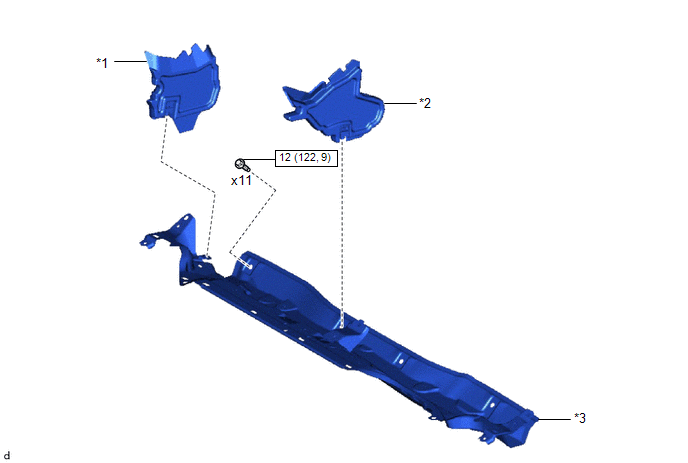

ILLUSTRATION
| *1 | WATER GUARD PLATE RH | *2 | NO. 1 FRONT VENTILATOR SEAL |
| *3 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

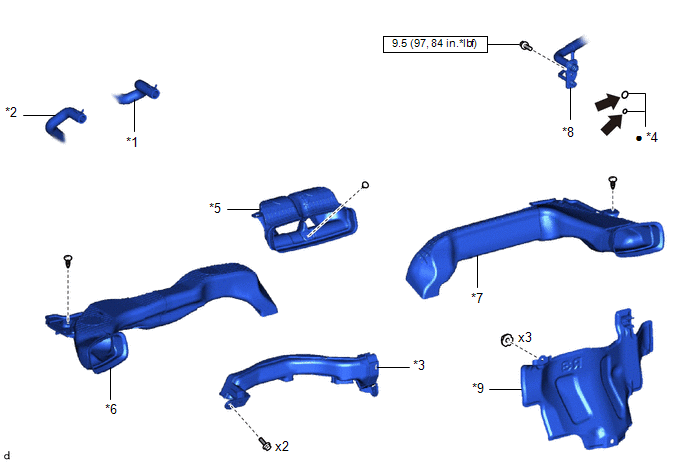

ILLUSTRATION
| *1 | OUTLET HEATER WATER HOSE | *2 | INLET HEATER WATER HOSE |
| *3 | NO. 1 AIR DUCT | *4 | O-RING |
| *5 | CENTER HEATER TO REGISTER DUCT SUB-ASSEMBLY | *6 | NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *7 | NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY | *8 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
| *9 | DASH PANEL HEAT INSULATOR | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Compressor oil ND-OIL 8 or equivalent | - | - |

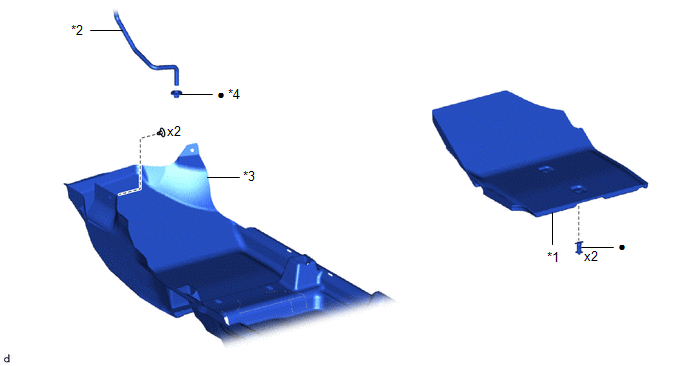

ILLUSTRATION
| *1 | NO. 4 DASH PANEL INSULATOR PAD | *2 | DRAIN COOLER HOSE |
| *3 | FRONT FLOOR CARPET ASSEMBLY | *4 | COOLER UNIT DRAIN HOSE GROMMET |
| ● | Non-reusable part | - | - |

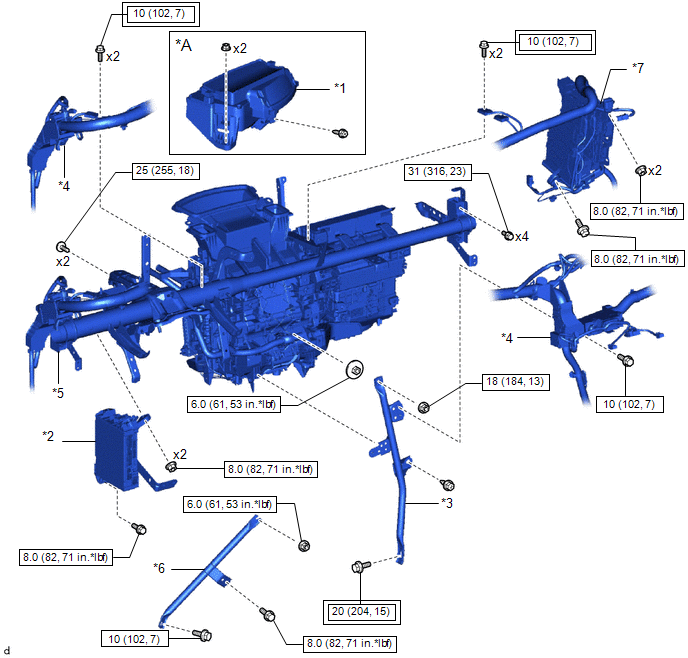

ILLUSTRATION
| *A | w/ Headup Display | - | - |
| *1 | METER MIRROR SUB-ASSEMBLY | *2 | POWER DISTRIBUTION BOX ASSEMBLY WITH MULTIPLEX NETWORK BODY ECU |
| *3 | NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY | *4 | INSTRUMENT PANEL WIRE |
| *5 | INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY | *6 | NO. 3 INSTRUMENT PANEL BRACE SUB-ASSEMBLY |
| *7 | ECU INTEGRATION BOX RH | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |

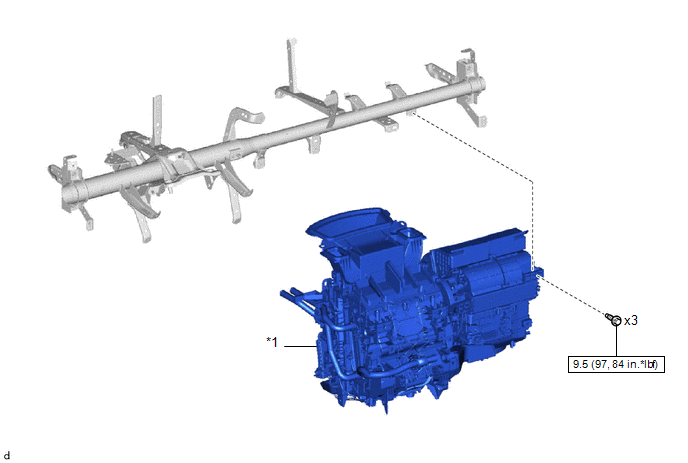

ILLUSTRATION
| *1 | AIR CONDITIONER UNIT ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

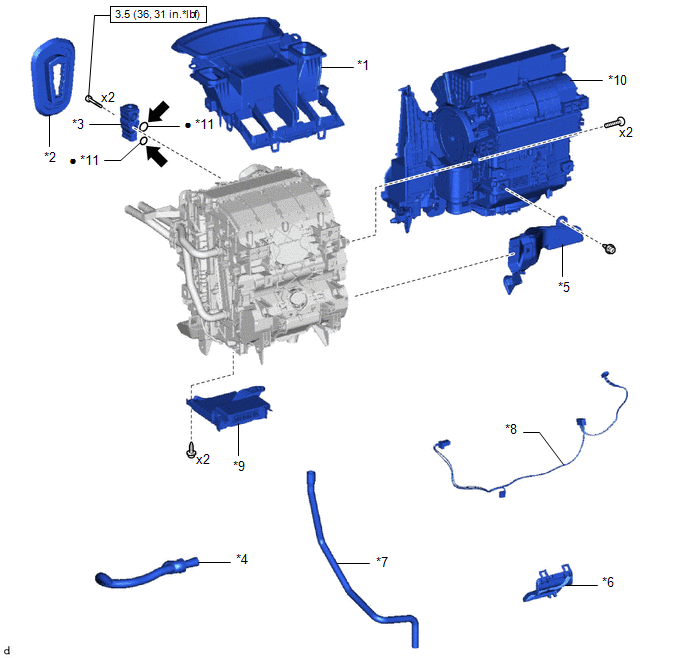

ILLUSTRATION
| *1 | LOWER DEFROSTER NOZZLE ASSEMBLY | *2 | COOLER PIPE GROMMET |
| *3 | COOLER EXPANSION VALVE | *4 | ASPIRATOR |
| *5 | NO. 2 AIR DUCT | *6 | COVER |
| *7 | DRAIN COOLER HOSE | *8 | AIR CONDITIONING HARNESS ASSEMBLY |
| *9 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *10 | BLOWER ASSEMBLY |
| *11 | O-RING | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Compressor oil ND-OIL 8 or equivalent | - | - |

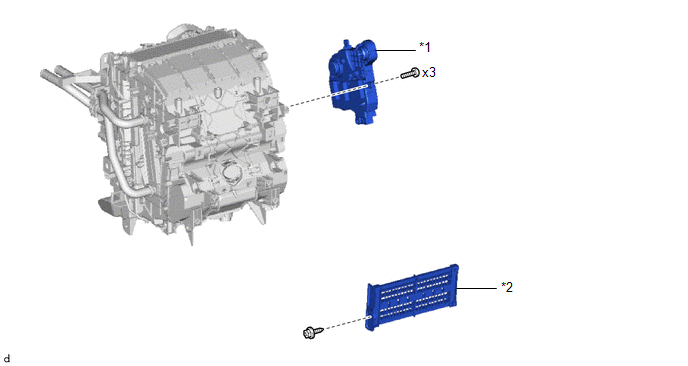

ILLUSTRATION
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | HEATER COVER |

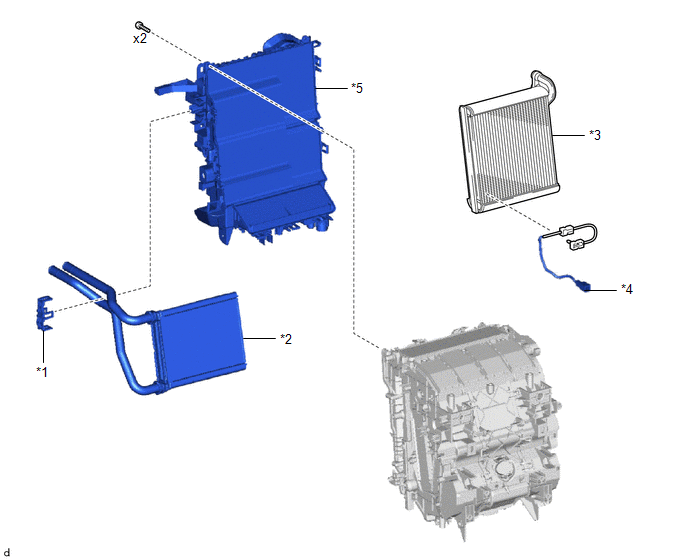

ILLUSTRATION
| *1 | HEATER CLAMP | *2 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *3 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *4 | NO. 1 COOLER THERMISTOR |
| *5 | UPPER HEATER CASE | - | - |

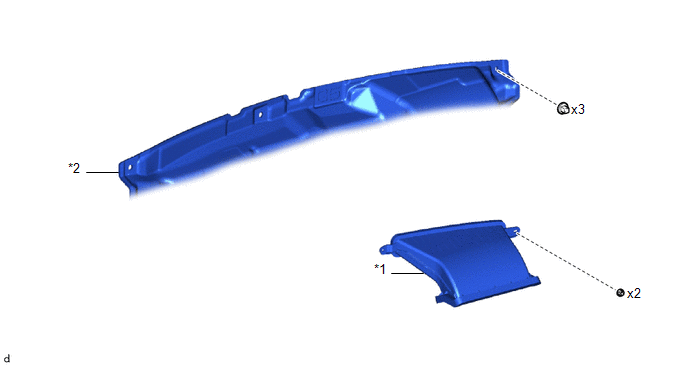

ILLUSTRATION
| *1 | AIR DUCT ASSEMBLY | *2 | FRONT PANEL SILENCER |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the air conditioner unit assembly removal/installation are shown below...
