Toyota Yaris: Windshield Glass / Components
COMPONENTS
ILLUSTRATION

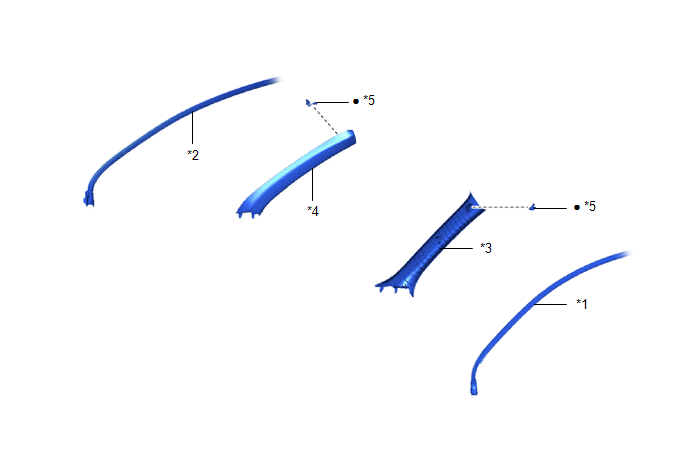

| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT PILLAR GARNISH RH |
| *5 | FRONT PILLAR GARNISH CLIP | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | w/ Pre-collision System | - | - |

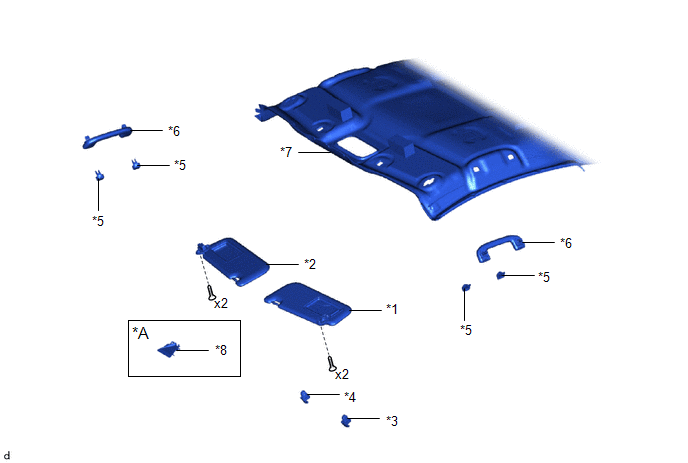

| *1 | VISOR ASSEMBLY LH | *2 | VISOR ASSEMBLY RH |
| *3 | VISOR HOLDER LH | *4 | VISOR HOLDER RH |
| *5 | ASSIST GRIP COVER | *6 | ASSIST GRIP SUB-ASSEMBLY |
| *7 | ROOF HEADLINING | *8 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
ILLUSTRATION

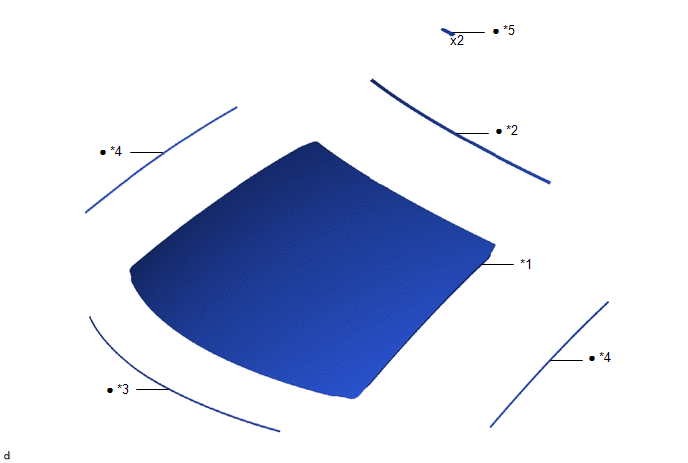

| *1 | WINDSHIELD GLASS | *2 | WINDSHIELD OUTSIDE MOULDING |
| *3 | NO. 2 WINDOW GLASS ADHESIVE DAM | *4 | WINDOW GLASS ADHESIVE DAM |
| *5 | WINDSHIELD GLASS STOPPER | - | - |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the windshield glass removal/installation are shown below...
