COMPONENTS

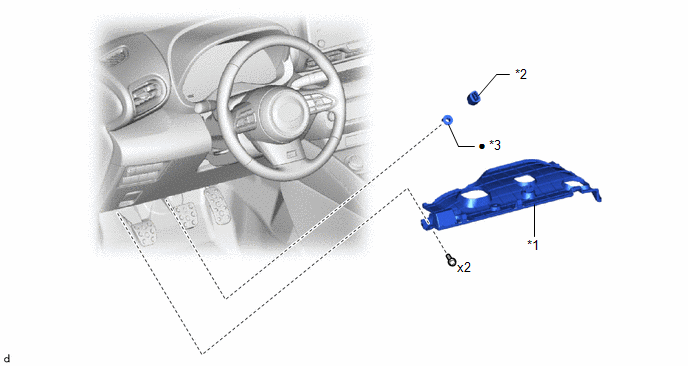

ILLUSTRATION

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*2

STOP LIGHT SWITCH ASSEMBLY

*3

STOP LIGHT SWITCH MOUNTING ADJUSTER

-

-

Non-reusable part

-

-

    Stop Light Switch

    ..

    On-vehicle Inspection

    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT STOP LIGHT SWITCH ASSEMBLY (a) Disconnect the stop light switch assembly connector. (b) Measure the voltage and resistance on the wire harness side connector according to the value(s) in the table below...
