Toyota Yaris: License Plate Light Assembly / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Lighting (ext) / License Plate Light Assembly / Components

COMPONENTS

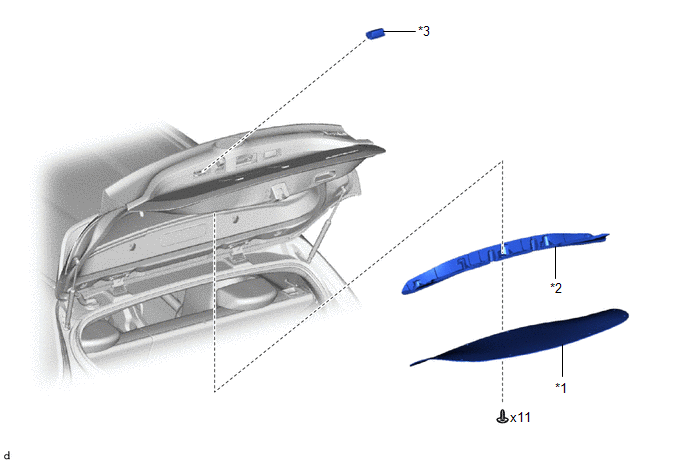

ILLUSTRATION

*1

BACK DOOR TRIM BOARD

*2

BACK DOOR TRIM COVER

*3

LICENSE PLATE LIGHT ASSEMBLY

-

-

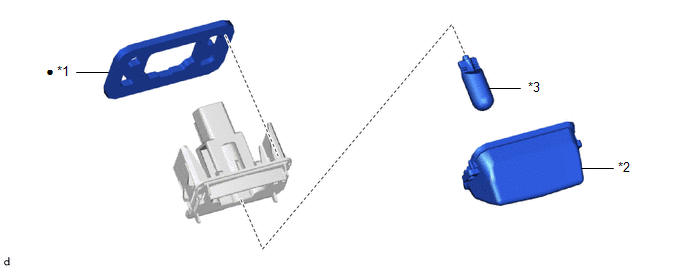

ILLUSTRATION

*1

LICENSE PLATE LIGHT PACKING

*2

LICENSE PLATE LIGHT LENS

*3

LICENSE PLATE LIGHT BULB

-

-

Non-reusable part

-

-

    License Plate Light Assembly

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1...
