Toyota Yaris: Front Door Belt Moulding / Components
COMPONENTS

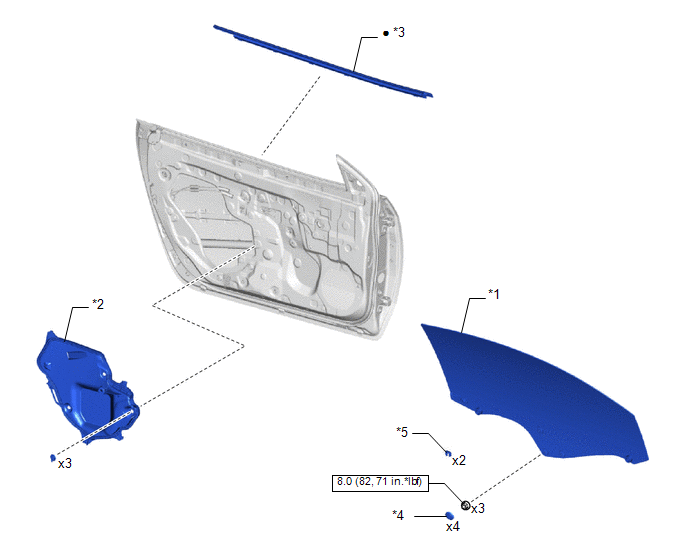

ILLUSTRATION
| *1 | FRONT DOOR GLASS SUB-ASSEMBLY | *2 | FRONT DOOR SERVICE HOLE COVER |
| *3 | FRONT DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY | *4 | HOLE PLUG |
| *5 | WINDOW REGULATOR SHIM | - | - |
| N*m (kgf*cm, ft.*lbf) : Specified torque | ● | Non-reusable part |
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the front door belt moulding removal/installation are shown below...
