PARTS LOCATION

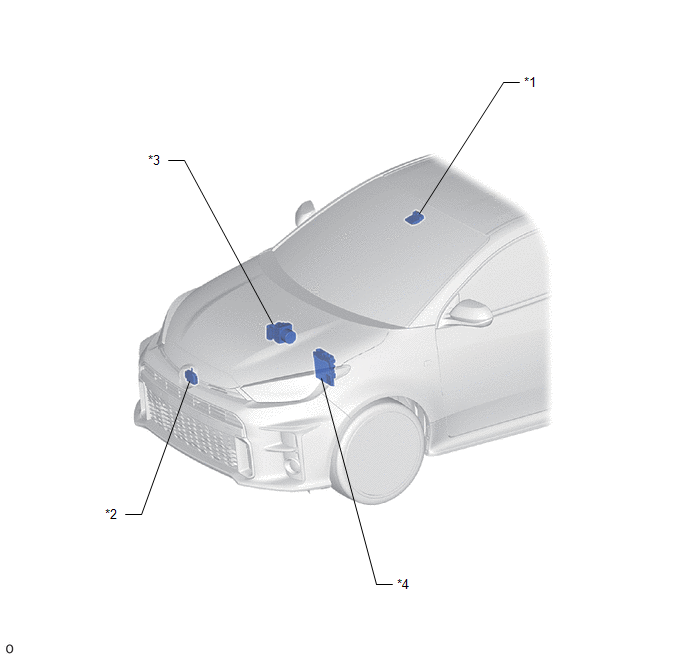

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

ECM

ILLUSTRATION

*1

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-IGR NO. 1 FUSE

- ECU-IGR NO. 2 FUSE

*2

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*3

POWER STEERING ECU ASSEMBLY

*4

COMBINATION METER ASSEMBLY

- MULTI-INFORMATION DISPLAY

- LTA INDICATOR

- METER BUZZER

*5

DLC3

*6

STEERING SENSOR

*7

STEERING PAD SWITCH ASSEMBLY

- LTA MAIN SWITCH

- FUNCTION SWITCH (CUSTOMIZE SWITCH)

*8

SPIRAL CABLE SUB-ASSEMBLY
