Toyota Yaris: Front Door / Components
COMPONENTS

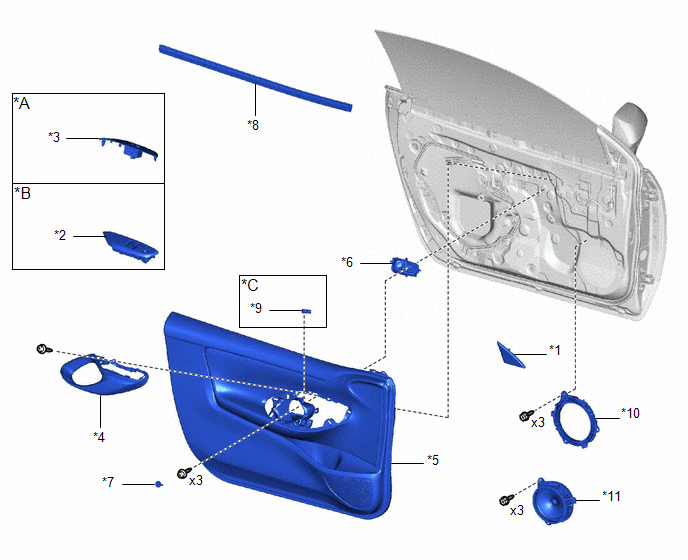

ILLUSTRATION
| *A | for Front Passenger Side | *B | for Driver Side |
| *C | w/ Interior Illumination | - | - |
| *1 | FRONT DOOR LOWER FRAME BRACKET GARNISH | *2 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL |
| *3 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL | *4 | FRONT DOOR TRIM GARNISH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY |
| *7 | FRONT DOOR INSIDE HANDLE BEZEL PLUG | *8 | FRONT DOOR GLASS INNER WEATHERSTRIP |
| *9 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY | *10 | NO. 1 FRONT SPEAKER BRACKET |
| *11 | NO. 1 FRONT SPEAKER ASSEMBLY | - | - |

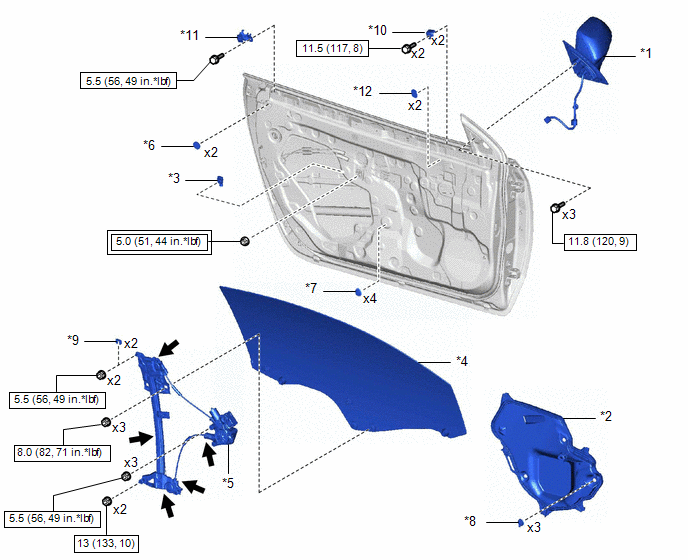

ILLUSTRATION
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY | *2 | FRONT DOOR SERVICE HOLE COVER |
| *3 | SIDE AIRBAG PRESSURE SENSOR | *4 | FRONT DOOR GLASS SUB-ASSEMBLY |
| *5 | FRONT DOOR WINDOW REGULATOR ASSEMBLY | *6 | HOLE SEAL |
| *7 | HOLE PLUG | *8 | FRONT DOOR SERVICE HOLE COVER CLIP |
| *9 | WINDOW REGULATOR SHIM | *10 | FRONT DOOR UPPER WINDOW STOP |
| *11 | DOOR GLASS FEMALE STABILIZER | *12 | HOLE SEAL |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque |
.png) | MP grease | - | - |

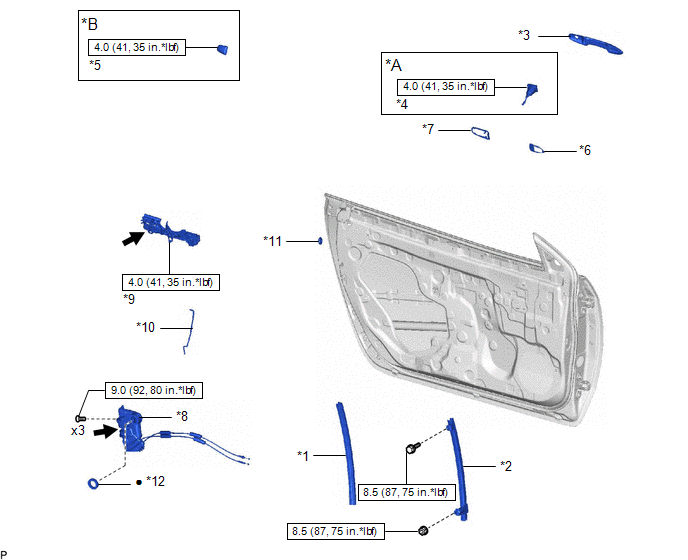

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT DOOR GLASS RUN | *2 | FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY | *4 | FRONT DOOR LOCK CYLINDER ASSEMBLY |
| *5 | FRONT DOOR OUTSIDE HANDLE COVER | *6 | FRONT DOOR OUTSIDE HANDLE FRONT PAD |
| *7 | FRONT DOOR OUTSIDE HANDLE REAR PAD | *8 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY |
| *9 | FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | *10 | FRONT DOOR LOCK OPEN ROD |
| *11 | HOLE PLUG | *12 | DOOR LOCK WIRING HARNESS SEAL |
|
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
|
| MP grease | - | - |

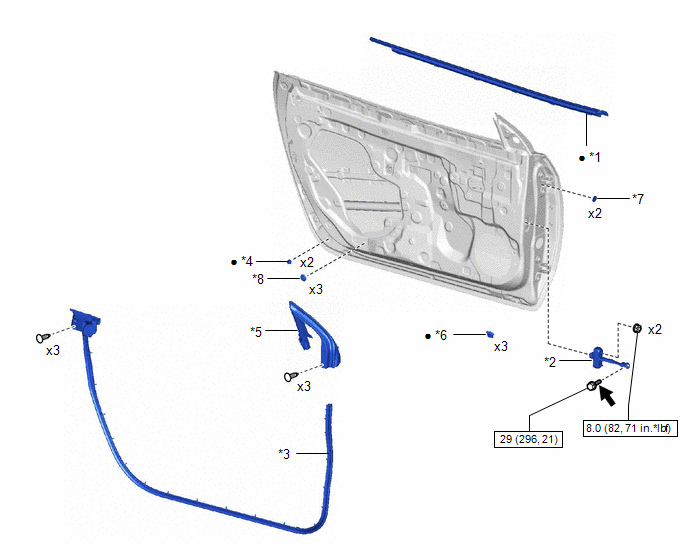

ILLUSTRATION
| *1 | FRONT DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY | *2 | FRONT DOOR CHECK ASSEMBLY |
| *3 | FRONT DOOR WEATHERSTRIP | *4 | CUSHION |
| *5 | FRONT DOOR DIVISION BAR SEAL | *6 | FRONT DOOR DUST PROOF SEAL |
| *7 | HOLE PLUG | *8 | HOLE PLUG |
|
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
|
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ★ | Precoated part |
