Toyota Yaris: Steering Gear / Components
COMPONENTS
ILLUSTRATION

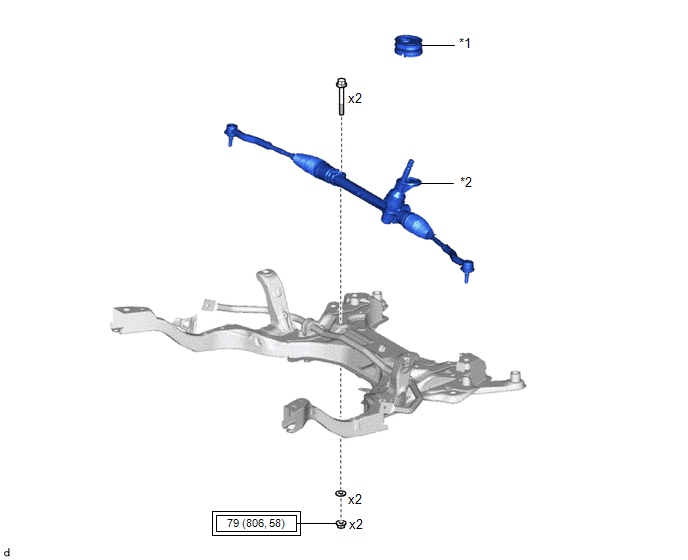

| *1 | STEERING COLUMN HOLE COVER | *2 | STEERING LINK ASSEMBLY |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

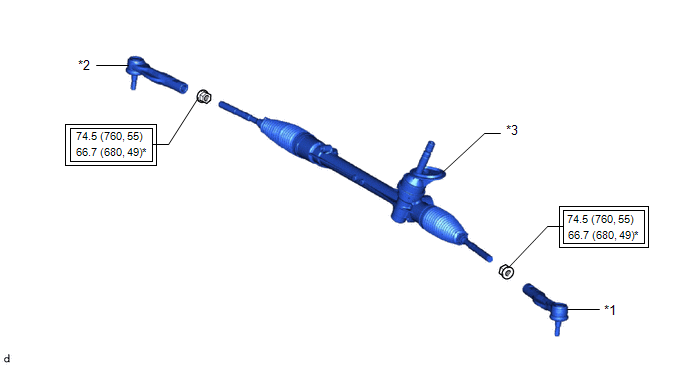

| *1 | TIE ROD END SUB-ASSEMBLY LH | *2 | TIE ROD END SUB-ASSEMBLY RH |
| *3 | STEERING LINK ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |
ILLUSTRATION

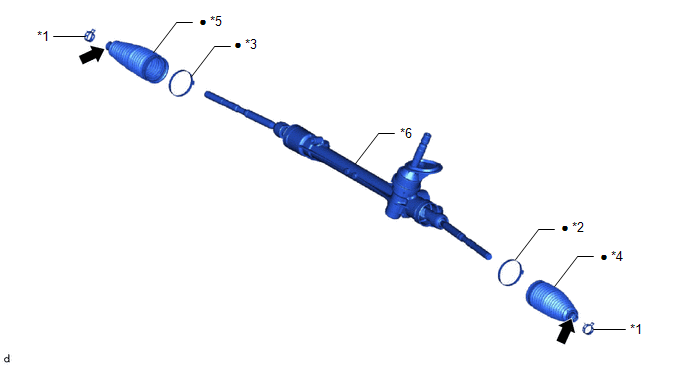

| *1 | STEERING RACK BOOT CLIP | *2 | NO. 2 STEERING RACK BOOT CLAMP |
| *3 | NO. 1 STEERING RACK BOOT CLAMP | *4 | NO. 2 STEERING RACK BOOT |
| *5 | NO. 1 STEERING RACK BOOT | *6 | STEERING GEAR ASSEMBLY |
| ● | Non-reusable part |
 | Lithium soap base glycol grease |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the steering gear assembly removal/installation are shown below...
