Toyota Yaris: Engine Unit / Components
COMPONENTS

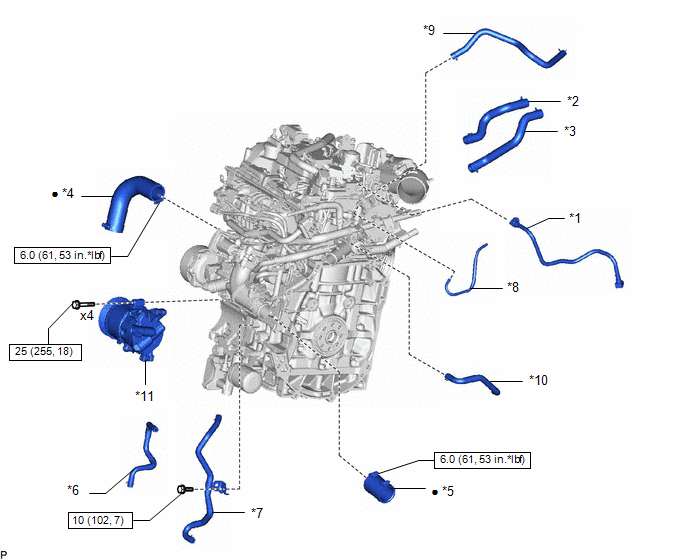

ILLUSTRATION
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | HEATER WATER HOSE INLET |
| *3 | HEATER WATER HOSE OUTLET | *4 | NO. 2 AIR HOSE |
| *5 | NO. 5 AIR HOSE | *6 | NO. 6 WATER BY-PASS HOSE |
| *7 | NO. 5 WATER BY-PASS HOSE | *8 | NO. 3 VACUUM TRANSMITTING HOSE |
| *9 | UNION TO CONNECTOR TUBE HOSE | *10 | NO. 1 TURBO WATER HOSE |
| *11 | COMPRESSOR WITH PULLEY ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

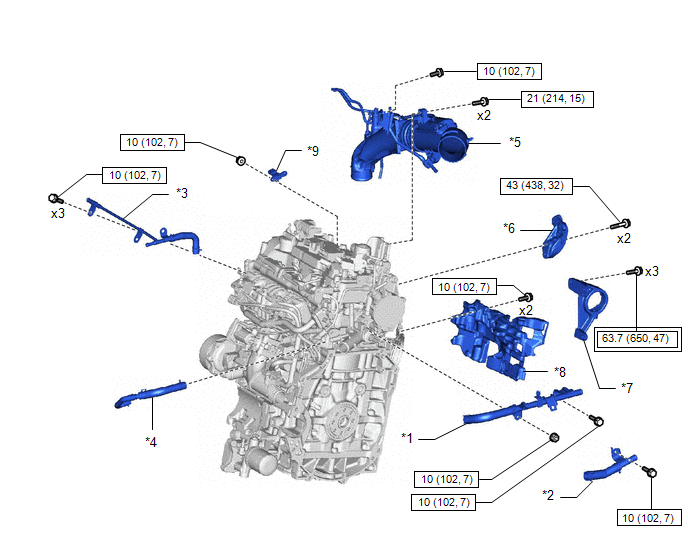

ILLUSTRATION
| *1 | NO. 1 WATER BY-PASS PIPE | *2 | NO. 3 WATER BY-PASS PIPE |
| *3 | NO. 4 WATER BY-PASS PIPE | *4 | WATER BY-PASS HOSE ASSEMBLY |
| *5 | INTAKE AIR PIPE | *6 | ENGINE HANGER BRACKET |
| *7 | DRIVE SHAFT BEARING BRACKET | *8 | NO. 4 CYLINDER BROCK INSULATOR |
| *9 | VACUUM SENSOR ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

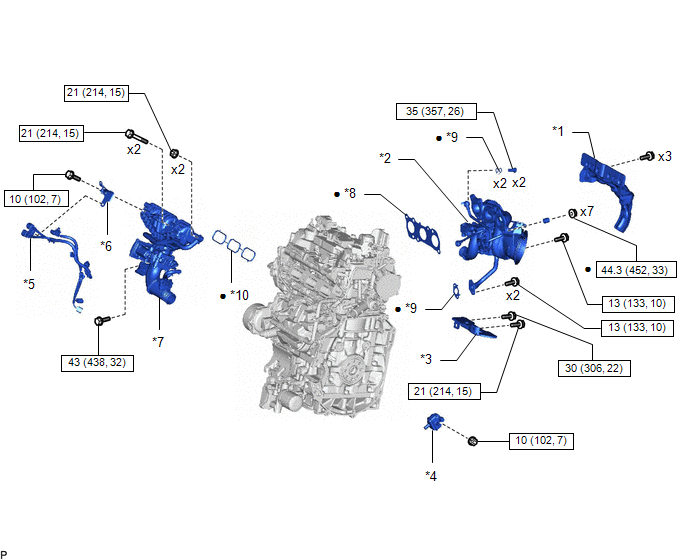

ILLUSTRATION
| *1 | NO. 1 TURBO INSULATOR | *2 | TURBOCHARGER SUB-ASSEMBLY |
| *3 | NO. 2 TURBO INSULATOR | *4 | PURGE VALVE (PURGE VSV) |
| *5 | NO. 6 ENGINE WIRE | *6 | NO. 2 ENGINE COVER BRACKET |
| *7 | INTAKE MANIFOLD | *8 | EXHAUST MANIFOLD TO HEAD GASKET |
| *9 | GASKET | *10 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

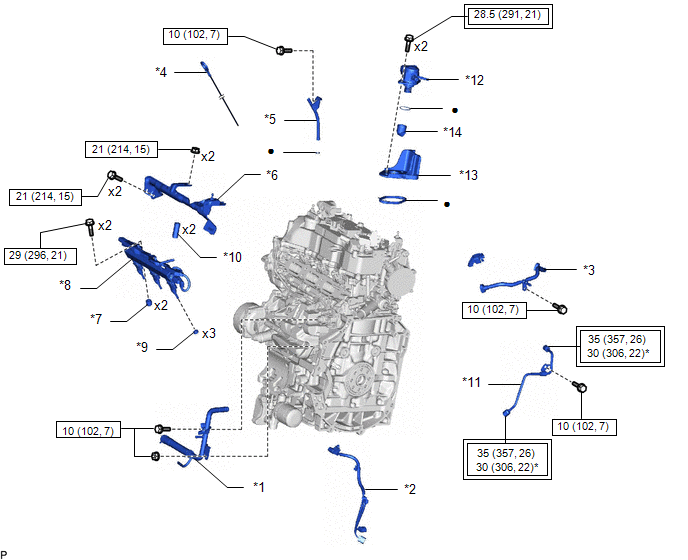

ILLUSTRATION
| *1 | WATER BY-PASS PIPE | *2 | NO. 7 ENGINE WIRE |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | OIL LEVEL GAGE SUB-ASSEMBLY |
| *5 | OIL LEVEL GAGE GUIDE | *6 | FUEL DELIVERY GUARD |
| *7 | NO. 1 DELIVERY PIPE SPACER | *8 | FUEL DELIVERY PIPE |
| *9 | INJECTOR VIBRATION INSULATOR | *10 | FUEL DELIVERY SPACER |
| *11 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *12 | FUEL PUMP ASSEMBLY |
| *13 | FUEL PUMP FLANGE | *14 | FUEL PUMP LIFTER ASSEMBLY |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | * | For use with a union nut wrench |

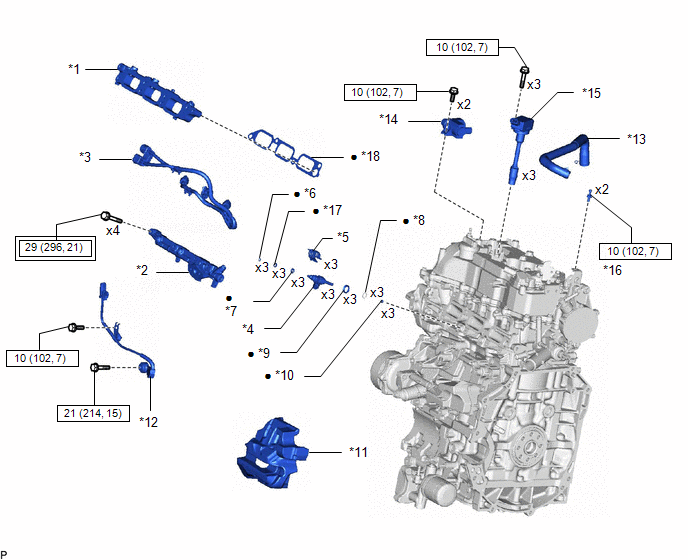

ILLUSTRATION
| *1 | NO. 1 VENTILATION FLANGE SEPARATOR | *2 | FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *3 | NO. 6 ENGINE WIRE | *4 | DIRECT FUEL INJECTOR ASSEMBLY |
| *5 | NOZZLE HOLDER CLAMP | *6 | NO. 3 FUEL INJECTOR BACK-UP RING |
| *7 | NO. 1 FUEL INJECTOR BACK-UP RING | *8 | C-RING |
| *9 | INJECTOR VIBRATION INSULATOR | *10 | FUEL INJECTOR SEAL |
| *11 | NO. 2 CYLINDER BLOCK INSULATOR | *12 | SENSOR WIRE |
| *13 | VENTILATION HOSE | *14 | VACUUM REGULATING VALVE ASSEMBLY |
| *15 | IGNITION COIL ASSEMBLY | *16 | ENGINE COVER JOINT |
| *17 | O-RING | *18 | MANIFOLD TO CYLINDER HEAD GASKET |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

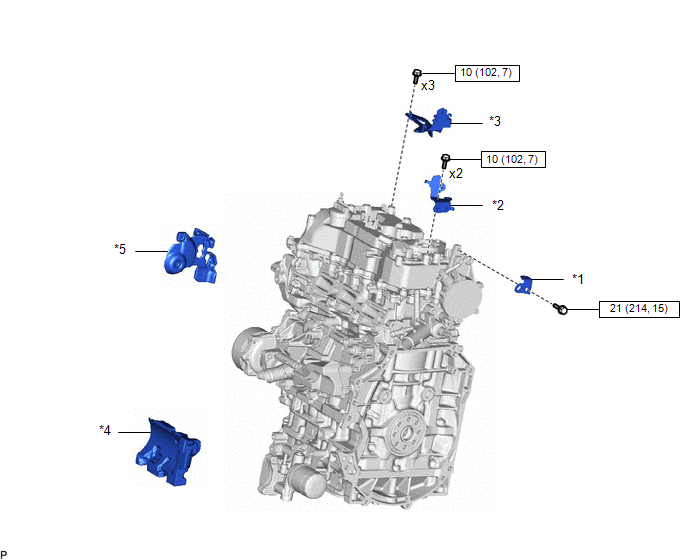

ILLUSTRATION
| *1 | ENGINE COVER BRACKET | *2 | FUEL HOSE BRACKET |
| *3 | INTAKE PIPE OR HOSE STAY | *4 | NO. 3 CYLINDER BLOCK INSULATOR |
| *5 | TIMING GEAR COVER INSULATOR | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

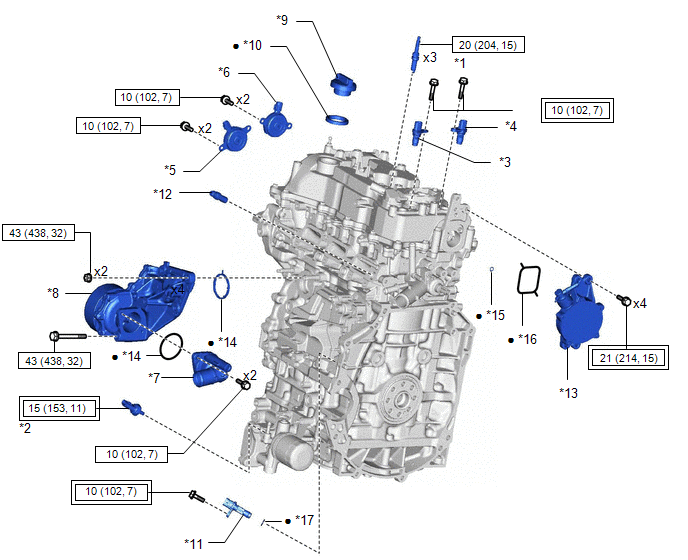

ILLUSTRATION
| *1 | SPARK PLUG | *2 | OIL PRESSURE AND TEMPERATURE SENSOR |
| *3 | CAMSHAFT POSITION SENSOR (for Intake Side) | *4 | CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *5 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side) | *6 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) |
| *7 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | *8 | WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY |
| *9 | OIL FILLER CAP ASSEMBLY | *10 | OIL FILLER CAP GASKET |
| *11 | CRANKSHAFT POSITION SENSOR | *12 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *13 | VACUUM PUMP ASSEMBLY | *14 | GASKET |
| *15 | NO. 4 O-RING | *16 | NO. 2 O-RING |
| *17 | O-RING | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | ★ | Precoated part |

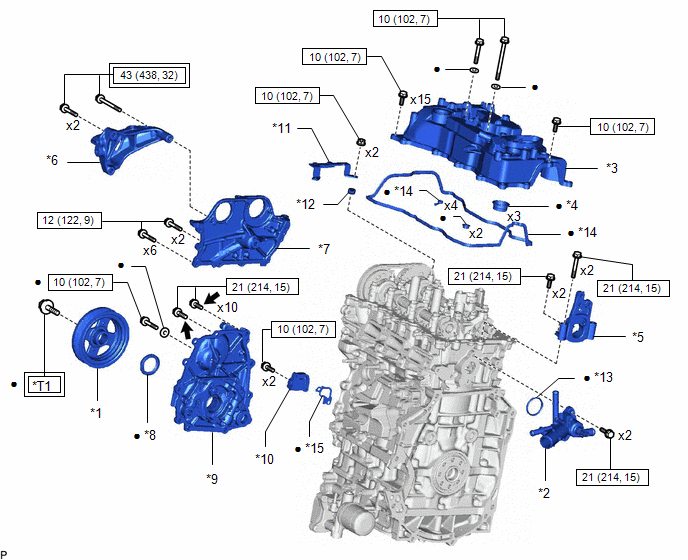

ILLUSTRATION
| *1 | CRANKSHAFT PULLEY ASSEMBLY | *2 | OUTLET WATER SUB-ASSEMBLY |
| *3 | CYLINDER HEAD COVER SUB-ASSEMBLY | *4 | SPARK PLUG TUBE GASKET |
| *5 | NO. 1 VACUUM PUMP BRACKET | *6 | ENGINE MOUNTING BRACKET RH |
| *7 | NO. 2 TIMING CHAIN COVER ASSEMBLY | *8 | TIMING CHAIN COVER OIL SEAL |
| *9 | TIMING CHAIN COVER ASSEMBLY | *10 | NO. 1 CHAIN TENSIONER ASSEMBLY |
| *11 | TIMING CHAIN GUIDE | *12 | DAMPER PLATE SPACER |
| *13 | OUTLET WATER GASKET | *14 | CYLINDER HEAD COVER GASKET |
| *15 | CHAIN TENSIONER GASKET | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 260 (2651 , 192) 2nd: Turn 90° | - | - |

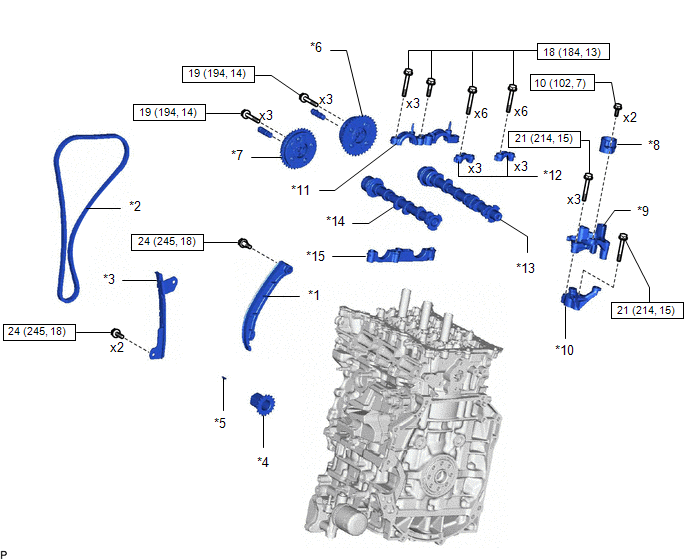

ILLUSTRATION
| *1 | CHAIN TENSIONER SLIPPER | *2 | CHAIN SUB-ASSEMBLY |
| *3 | NO. 1 CHAIN VIBRATION DAMPER | *4 | CRANKSHAFT TIMING GEAR OR SPROCKET |
| *5 | CRANKSHAFT TIMING GEAR KEY | *6 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 | CAMSHAFT TIMING GEAR ASSEMBLY | *8 | FUEL PUMP LIFTER GUIDE |
| *9 | FUEL PUMP LIFTER HOUSING | *10 | CAMSHAFT POSITION SENSOR HOLDER |
| *11 | NO. 2 CAMSHAFT BEARING CAP | *12 | NO. 4 CAMSHAFT BEARING CAP |
| *13 | EXHAUST CAMSHAFT SUB-ASSEMBLY | *14 | INTAKE CAMSHAFT SUB-ASSEMBLY |
| *15 | NO. 1 CAMSHAFT BEARING CAP | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

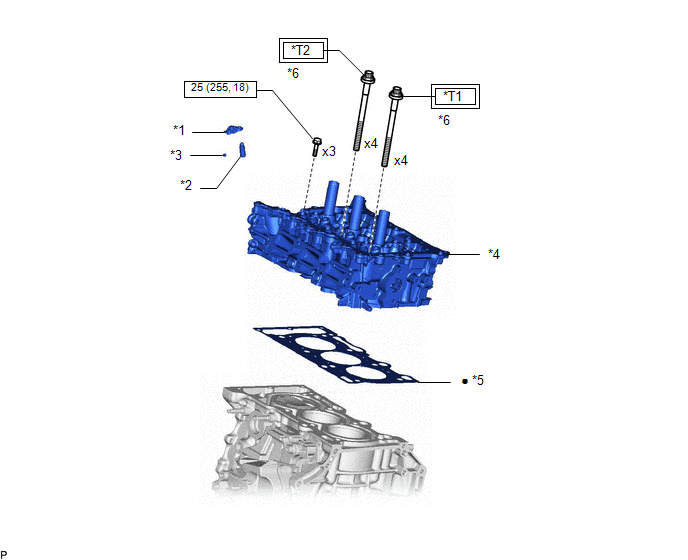

ILLUSTRATION
| *1 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | *2 | VALVE LASH ADJUSTER ASSEMBLY |
| *3 | VALVE STEM CAP | *4 | CYLINDER HEAD SUB-ASSEMBLY |
| *5 | CYLINDER HEAD GASKET | *6 | CYLINDER HEAD SET BOLT |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 50 (510, 37) 2nd: Turn 90° 3rd: Turn 90° | *T2 | 1st: 40 (408, 30) 2nd: Turn 90° 3rd: Turn 90° |

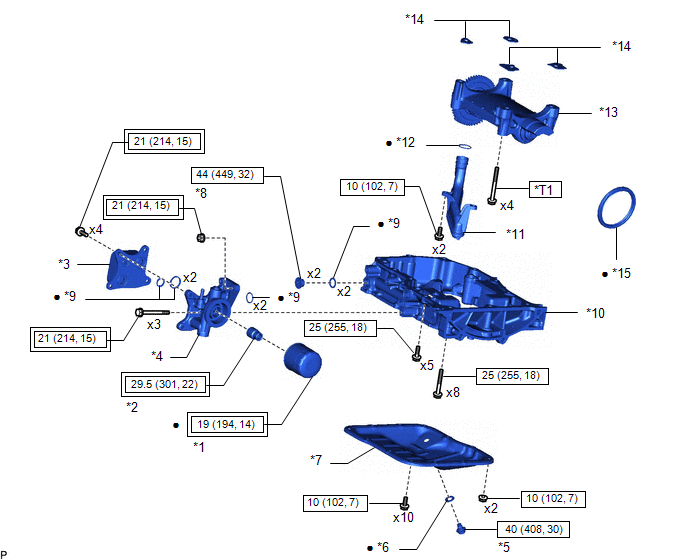

ILLUSTRATION
| *1 | OIL FILTER SUB-ASSEMBLY | *2 | OIL FILTER UNION |
| *3 | OIL COOLER ASSEMBLY | *4 | OIL FILTER BRACKET SUB-ASSEMBLY |
| *5 | OIL PAN DRAIN PLUG | *6 | OIL PAN DRAIN GASKET |
| *7 | NO. 2 OIL PAN SUB-ASSEMBLY | *8 | NO. 1 OIL PAN PLUG |
| *9 | GASKET | *10 | OIL PAN SUB-ASSEMBLY |
| *11 | OIL STRAINER SUB-ASSEMBLY | *12 | OIL STRAINER GASKET |
| *13 | ENGINE BALANCER ASSEMBLY | *14 | BALANCESHAFT HOUSING SPACER |
| *15 | REAR ENGINE OIL SEAL | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 43 (438, 32) 2nd: 54 (551, 40) | - | - |

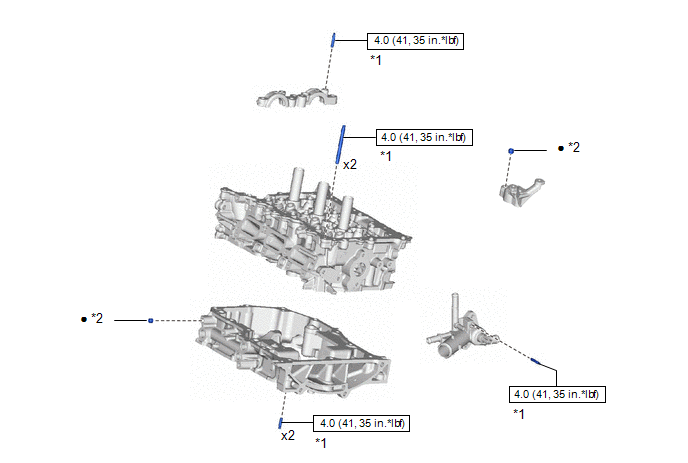

ILLUSTRATION
| *1 | STUD BOLT | *2 | RING PIN |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Precaution
PRECAUTION HINT:
Any digits beyond the 0.01 mm (1/1000 in.) place for standard, minimum and maximum values should be used as a reference only.
When both standard and maximum or minimum values are listed for an inspection, use the standard value as a reference only and base any judgments on the maximum and minimum values...
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during engine unit removal/installation are shown below...
