Toyota Yaris: Cylinder Head / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Engine & Hybrid System / G16e-gts (engine Mechanical) / Cylinder Head / Components

COMPONENTS

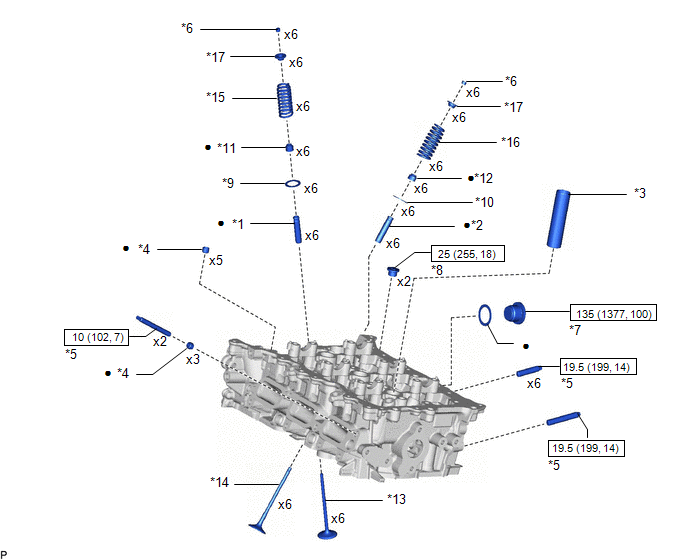

ILLUSTRATION

*1	INTAKE VALVE GUIDE BUSH	*2	EXHAUST VALVE GUIDE BUSH
*3	SPARK PLUG TUBE	*4	RING PIN
*5	STUD BOLT	*6	VALVE SPRING RETAINER LOCK
*7	NO. 2 STRAIGHT SCREW PLUG	*8	NO. 1 STRAIGHT SCREW PLUG
*9	INTAKE VALVE SPRING SEAT	*10	EXHAUST VALVE SPRING SEAT
*11	INTAKE VALVE STEM OIL SEAL	*12	EXHAUST VALVE STEM OIL SEAL
*13	INTAKE VALVE	*14	EXHAUST VALVE
*15	INTAKE VALVE COMPRESSION SPRING	*16	EXHAUST VALVE COMPRESSION SPRING
*17	VALVE SPRING RETAINER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

Precaution

PRECAUTION HINT: Any digits beyond the 0.01 mm (1/1000 in.) place for standard, minimum and maximum values should be used as a reference only. When both standard and maximum or minimum values are listed for an inspection, use the standard value as a reference only and base any judgments on the maximum and minimum values...

Disassembly

DISASSEMBLY CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during cylinder head removal/installation are shown below...
