Toyota Yaris: Stop And Start System / Backup Boost Converter "A" Control CPU Signal Invalid (P060629)

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Engine & Hybrid System / Stop And Start / Stop And Start System / Backup Boost Converter "A" Control CPU Signal Invalid (P060629)

DESCRIPTION

The engine stop and start ECU can detect open circuits when signals such as the boost, standby request or overheating signal cannot be sent to the backup boost converter control IC from the stop and start control IC in the engine stop and start ECU.

If a CPU duty malfunction is detected, the engine stop and start ECU stores DTC P060629 and blinks the stop and start cancel indicator.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Warning Indicate

Memory

Note

P060629

Backup Boost Converter "A" Control CPU Signal Invalid

The following condition continues for 1 second or more (2 trip detection logic):

  • CPU duty malfunction is detected.
  • Wire harness or connector
  • Engine stop and start ECU

Blinks

DTC stored

SAE Code: P0606

CONFIRMATION DRIVING PATTERN

HINT:

  • If the cable is disconnected from the auxiliary battery terminal, stop and start control is prohibited until refresh charge is completed.

    In this case, let the vehicle idle to complete the refresh charge. The refresh charge is complete when the Data List item Status of Auxiliary Battery Charge Control changes from "Refresh Charge Mode". (Usually, idling the engine for 5 to 60 minutes with the auxiliary battery fluid temperature at 11°C (52°F) or higher, the refresh charge will be completed.)

  • If the GTS is not available and the Data List item Status of Auxiliary Battery Charge Control cannot be checked, charge the auxiliary battery by idling the engine for approximately 5 to 60 minutes or driving the vehicle, and then drive the vehicle and check that stop and start control operates.

    If the engine is started with the hood open, the system determines that a jump start has occurred. Therefore, make sure that the hood is closed before starting the engine and driving the vehicle.

  • After the refresh charge completes, turn the ignition switch off, wait for at least 30 seconds, and then start the engine again. If the vehicle enters refresh charge mode again while the engine is idling, the initial refresh charge did not properly complete, so wait for the refresh charge to complete.
  • Allow the engine to idle for 3 minutes after it is warmed up and check that the engine idle speed is within 50 rpm of the target idle speed.

CONFIRMATION AFTER TROUBLESHOOTING

(a) Clear the DTCs.

Powertrain > Stop and Start > Clear DTCs

(b) Start the engine and warm it up.

(c) Drive the vehicle at 7 km/h (4 mph) or more.

CAUTION:

When performing Confirmation Driving Pattern, obey all speed limits and traffic laws.

(d) Stop the vehicle, move the shift lever to neutral and release the clutch pedal.

(e) Keep the engine stopped by stop and start control for 1 second or more.

(f) Depress the clutch pedal and start the engine.

HINT:

If the engine cranks slowly when the engine is restarted, it can be determined that the auxiliary battery voltage is low.

(g) Check that DTCs are not output.

Powertrain > Stop and Start > Trouble Codes

STOP AND START SYSTEM OPERATION CHECK

Click here

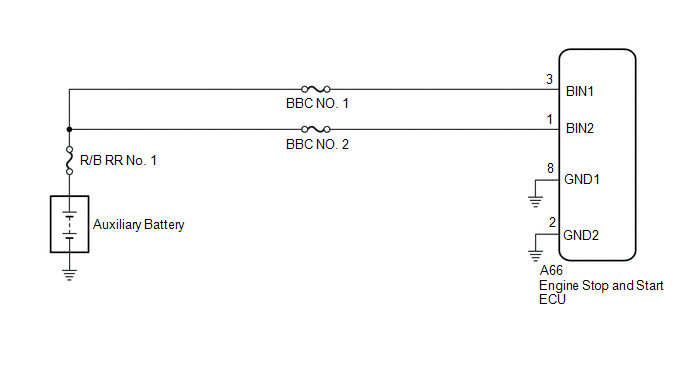

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Before replacing the engine stop and start ECU, read the number of starter operations and write it into a new engine stop and start ECU.

    Click here

  • After replacing the engine stop and start ECU, perform learning of the external backup boost converter (eco run vehicle converter assembly).

    Click here

  • After replacing the engine stop and start ECU or air conditioning amplifier assembly, reset and perform learning of the air conditioning information in the engine stop and start ECU.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:

  • Using the GTS, read the freeze frame data before troubleshooting. System condition information is recorded as freeze frame data the moment a DTC is stored. This information can be useful when troubleshooting.

    Click here

  • For wire harness and connector inspection procedures and precautions, refer to "Click here "
  • DTCs for the stop and start system are not cleared even if the malfunction has been repaired. After repairing the malfunction, be sure to clear the DTCs.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - AUXILIARY BATTERY)

(a) Disconnect the engine stop and start ECU connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A66-1 (BIN2) - Body ground

Always

9.5 to 14 V

A66-3 (BIN1) - Body ground

Always

9.5 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - BODY GROUND)

(a) Disconnect the A66 engine stop and start ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A66-2 (GND2) - Body ground

Always

Below 1 Ω

A66-8 (GND1) - Body ground

Always

Below 1 Ω

OK

REPLACE ENGINE STOP AND START ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
