Components

COMPONENTS

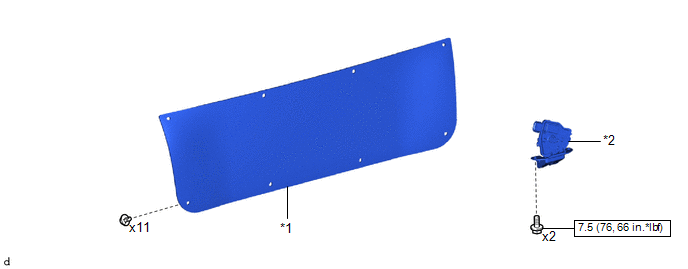

ILLUSTRATION

*1

BACK DOOR TRIM BOARD

*2

BACK DOOR LOCK ASSEMBLY W/COURTESY LIGHT SWITCH

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

Removal

REMOVAL

PROCEDURE

1. REMOVE BACK DOOR TRIM BOARD

Click here

2. REMOVE BACK DOOR LOCK ASSEMBLY W/COURTESY LIGHT SWITCH

(a) Disconnect the connector.

(b) Remove the 2 bolts and back door lock assembly w/ courtesy light switch.

Inspection

INSPECTION

PROCEDURE

1. INSPECT BACK DOOR LOCK ASSEMBLY W/COURTESY LIGHT SWITCH

(a) Check the operation of the door lock motor.

(1) Move the door lock to the close (lock) position.

(2) Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:

Tester Connection

Specified Condition

Y7-1(ACT+) - Auxiliary battery positive (+)

Y7-2(ACT-) - Auxiliary battery negative (-)

Back door lock motor open (unlock) operation

If the result is not as specified, replace the back door lock assembly w/ courtesy light switch.

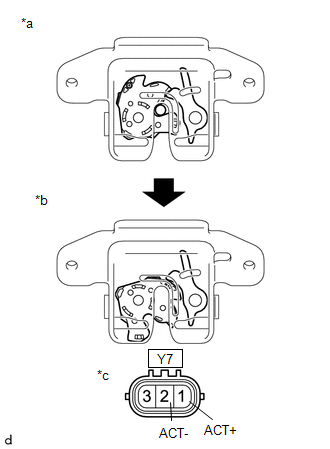

*a

Close (Lock)

*b

Open (Unlock)

*c

Component without harness connected

(Back Door Lock Assembly w/ Courtesy Light Switch)

Installation

INSTALLATION

PROCEDURE

1. INSTALL BACK DOOR LOCK ASSEMBLY W/COURTESY LIGHT SWITCH

HINT:

Make sure to remove the string before installing a new back door lock assembly w/ courtesy light switch.

(a) Apply MP grease to the sliding parts of the back door lock assembly w/ courtesy light switch.

(b) Install the back door lock assembly w/ courtesy light switch with the 2 bolts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(c) Connect the connector.

2. INSTALL BACK DOOR TRIM BOARD

Click here
