Toyota Yaris: Audio System / Antenna
4-Door
AM/FM Radio Antenna
The AM/FM radio antenna receives both AM and FM signals.
The antenna is embedded into the window glass.
Satellite Radio Antenna (if equipped)

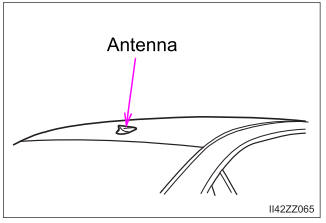

The satellite radio antenna
receives SiriusXM signals.

NOTICE
AM/FM Radio Antenna
When washing the inside of the window which has an antenna, use a soft
cloth dampened in lukewarm water, gently wiping the antenna lines. Use of
glass cleaning products could damage the antenna.
5-Door
AM/FM Radio Antenna (if equipped)
The AM/FM radio antenna receives both AM and FM signals.
Type A

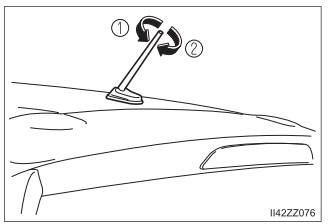

- To remove the antenna, turn
it counterclockwise.
- To install the antenna, turn it
clockwise.
Make sure the antenna is
securely installed.

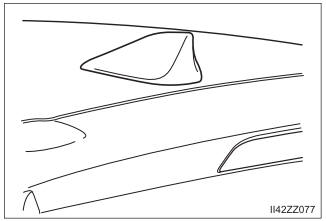

Type B

NOTICE
AM/FM Radio antenna
Type A only:
- To prevent damage to the antenna, remove it before entering a car
wash
facility or passing beneath a low overhead clearance.
- Be careful around the antenna when removing snow from the roof.
Otherwise the antenna could be damaged.
- When leaving your vehicle unattended, we recommend that you remove
the antenna and store it inside the vehicle.

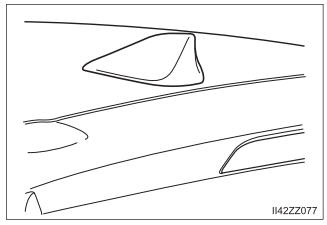

Antenna for AM/FM and Satellite Radio Antenna (if equipped)

The antenna for AM/FM and
satellite radio antenna receives
both AM and FM signals and
SiriusXM signals.
Do not spill any liquid on the audio system.
To prevent the battery from being discharged, do not leave the audio
system
on for a long period of time when the engine is not running...
