Toyota Yaris: Installing Child-Restraint Systems / Anchor Bracket
Anchor brackets for securing child-restraint systems are equipped in the vehicle. Locate each anchor position using the illustration.
To install a child-restraint system, if the seat is equipped with a head restraint, remove it. Always follow the instruction manual accompanying the child-restraint system.

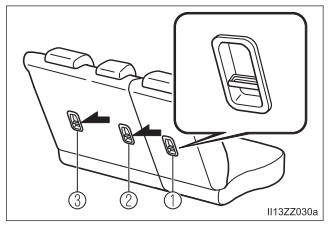

Anchor bracket location
Use the indicated anchor bracket locations when installing a child-restraint system equipped with a tether.
4-Door
- For right
- For center
- For left
5-Door
- For right
- For center
- For left
WARNING
Always attach the tether strap to the correct tether anchor position
Attaching the tether strap to the incorrect tether anchor position is dangerous. In a collision, the tether strap could come off and loosen the childrestraint system. If the child-restraint system moves it could result in death or injury to the child.
Always remove the head restraint and install child-restraint system
Installing a child-restraint system without removing the head restraint is danger ous. The child-restraint system cannot be installed correctly which may result in death or injury to the child in a collision.
4-Door
5-Door
WARNING
Always install the head restraint and adjust it to the appropriate position after removing the child-restraint system
Driving with the head restraint removed is dangerous as impact to the occupant’s head cannot be prevented during emergency braking or in a collision, which could result in a serious accident, injury or death. Refer to Head Restraints.
