Toyota Yaris: Active Noise Control System / Parts Location

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Audio & Visual & Telematics / Audio / Video / Active Noise Control System / Parts Location

PARTS LOCATION

ILLUSTRATION

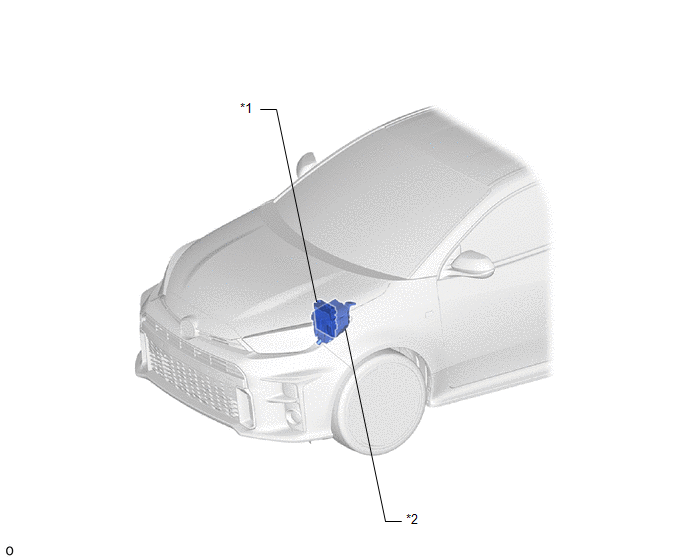

*1

ECM

*2

NO. 1 ENGINE ROOM RELAY BLOCK

- ECU-IGP NO. 3 FUSE

ILLUSTRATION

*1

STEREO COMPONENT EQUALIZER ASSEMBLY

*2

DLC3

ILLUSTRATION

*1

ACTIVE NOISE CONTROL MICROPHONE LH

*2

ACTIVE NOISE CONTROL MICROPHONE RH

*3

FRONT NO. 2 SPEAKER ASSEMBLY LH

*4

FRONT NO. 2 SPEAKER ASSEMBLY RH

*5

FRONT NO. 1 SPEAKER ASSEMBLY LH

*6

FRONT NO. 1 SPEAKER ASSEMBLY RH

*7

REAR SPEAKER ASSEMBLY LH

*8

REAR SPEAKER ASSEMBLY RH

    Precaution

    PRECAUTION PRECAUTION FOR ACTIVE NOISE CONTROL SYSTEM (a) If the active noise control microphone garnish hole is blocked, clean away the blockage and perform diagnosis...

    System Description

    SYSTEM DESCRIPTION ACTIVE NOISE CONTROL SYSTEM (a) The active noise control system is a system that detects muffled engine sounds produced in sync that fluctuates according to the engine speed, by using the active noise control microphone and outputs anti-phase control sound through the audio speakers to reduce muffled engine sounds...
