Toyota Yaris: Before Driving / Advanced Keyless Entry System (If equipped)

Toyota Yaris XP210 (2020-2022) Owner's Manual / Before Driving / Advanced Keyless Entry System (If equipped)

The advanced keyless function allows you to lock/unlock the door and the liftgate or open the liftgate/trunk lid while carrying the key.

System malfunctions or warnings are indicated by the following warning lights or beeps.

  • Request switch Inoperable Warning Beep

    Refer to Request Switch Inoperable Warning Beep (With the advanced keyless function).

  • Key Left-in-luggage Compartment/Trunk Warning Beep

    Refer to Key Left-in-luggage Compartment/Trunk Warning Beep (With the advanced keyless function).

  • Key Left-in-vehicle Warning Beep

    Refer to Key Left-in-vehicle Warning Beep (With the advanced keyless function).

The advanced keyless entry system functions can be deactivated to prevent any possible adverse effect on a user wearing a pacemaker or other medical device. If the system is deactivated, you will be unable to start the engine by carrying the key. Consult your Toyota dealer for details. If the advanced keyless entry system has been deactivated, you can start the engine by following the procedure indicated when the key battery goes dead.

Refer to Engine Start Function When Key Battery is Dead.


Radio waves from the key may affect medical devices such as pacemakers

Before using the key near people who use medical devices, ask the medical device manufacturer or your physician if radio waves from the key will affect the device.

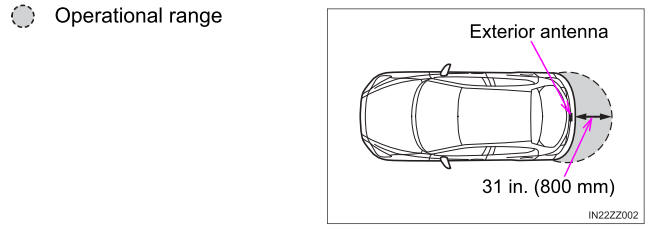

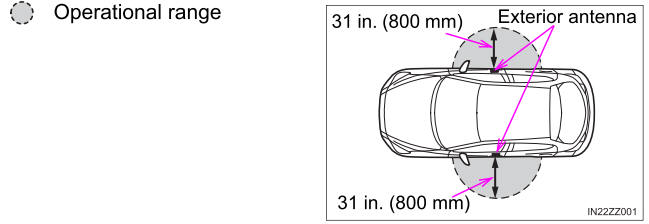

Operational Range

The system operates only when the driver is in the vehicle or within operational range while the key is being carried.

Locking, Unlocking the Doors and the Liftgate

Toyota Yaris. Advanced Keyless Entry System (If equipped)

Opening the Liftgate/Trunk Lid

Toyota Yaris. Advanced Keyless Entry System (If equipped)

  • When the battery power is low, or in places where there are high-intensity radio waves or noise, the operational range may become narrower or the system may not operate. For determining battery replacement, Refer to Keyless Entry System.
  • The system may not operate if you are too close to the windows or door handles.
  • If the key is left in the following areas and you leave the vehicle, the doors may be locked depending on the radio wave conditions even if the key is left in the vehicle.
    • Around the dashboard
    • In the storage compartments such as the glove compartment or the center console
    • On the rear parcel shelf (4–door)
    • Next to a communication device such as a mobile phone

    Key Suspend Function

    If a key is left in the vehicle, the functions of the key left in the vehicle are temporarily suspended to prevent theft of the vehicle. To restore the functions, press the unlock button on the functions-suspended key in the vehicle...
