Toyota Yaris: Wiper / Washer / Washer Nozzle
Components
COMPONENTS

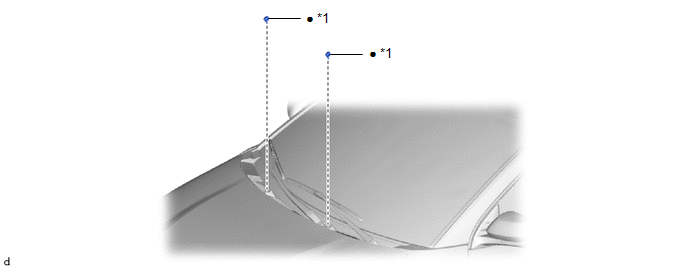

ILLUSTRATION
| *1 | WASHER NOZZLE SUB-ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

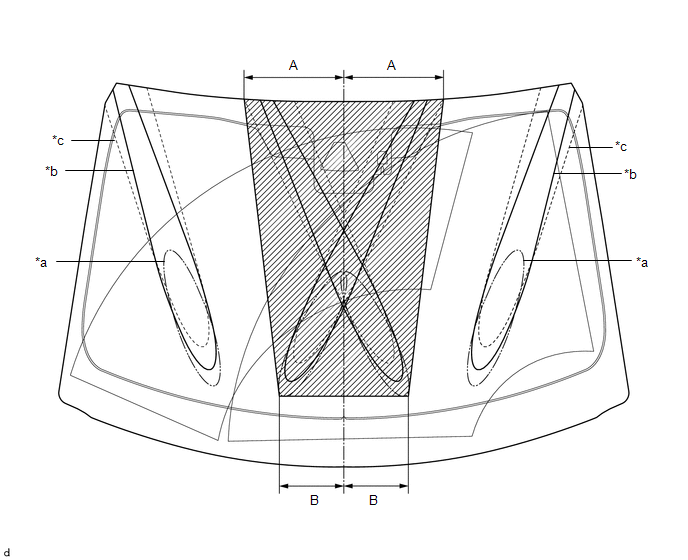

(a) Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard:
Washer fluid contacts the windshield in the areas shown in the illustration.
| *a | Upper Limit | *b | Standard |
| *c | Lower Limit | - | - |
.png) | Measurement | - | - |
Standard Measurement:
| Area | Measurement | Area | Measurement |
|---|---|---|---|
| A | 245.2 mm (9.65 in.) | B | 157.6 mm (6.20 in.) |
If the result is not as specified, replace the washer nozzle sub-assembly.
Removal
REMOVAL
PROCEDURE
1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
HINT:
Use the same procedure as for the opposite side.

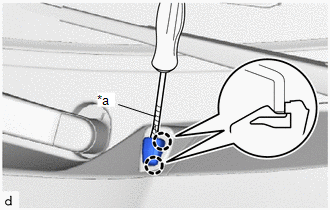

| (a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to separate the washer nozzle sub-assembly. |
|
| (b) Disconnect the washer hose to remove the washer nozzle sub-assembly. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
HINT:
Use the same procedure as for the opposite side.

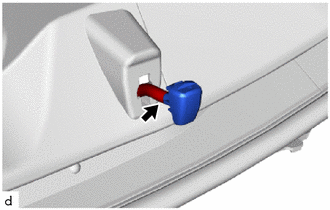

(a) Connect a new washer nozzle sub-assembly to the washer hose.

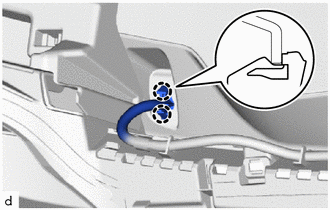

| (b) Engage the claws to install the washer nozzle sub-assembly. |
|
2. INSPECT WASHER NOZZLE SUB-ASSEMBLY
Click here
.gif)
3. ADJUST WASHER NOZZLE SUB-ASSEMBLY
Click here
Adjustment
ADJUSTMENT
PROCEDURE
1. REMOVE WASHER NOZZLE SUB-ASSEMBLY
Click here
.gif)
2. ADJUST WASHER NOZZLE SUB-ASSEMBLY

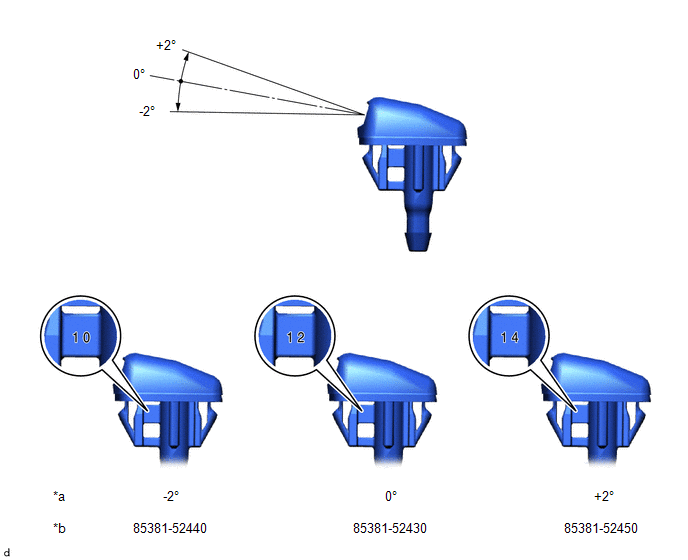

(a) Select a washer nozzle sub-assembly so that the position that the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.
| *a | Washer Fluid Spray Angle | *b | Part Number |
3. INSTALL WASHER NOZZLE SUB-ASSEMBLY
Click here
