Toyota Yaris: Active Noise Control System / System Diagram

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Audio & Visual & Telematics / Audio / Video / Active Noise Control System / System Diagram

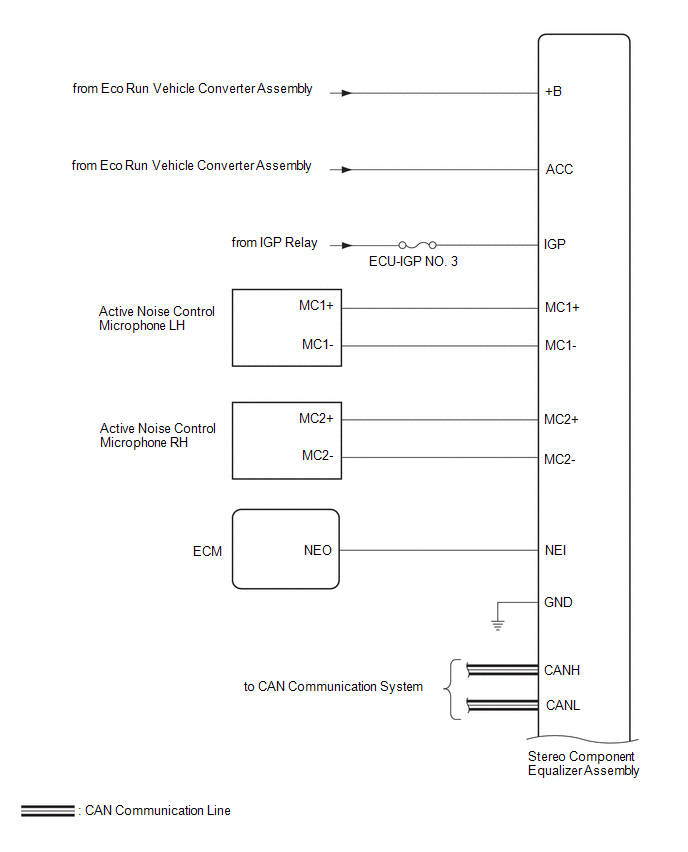

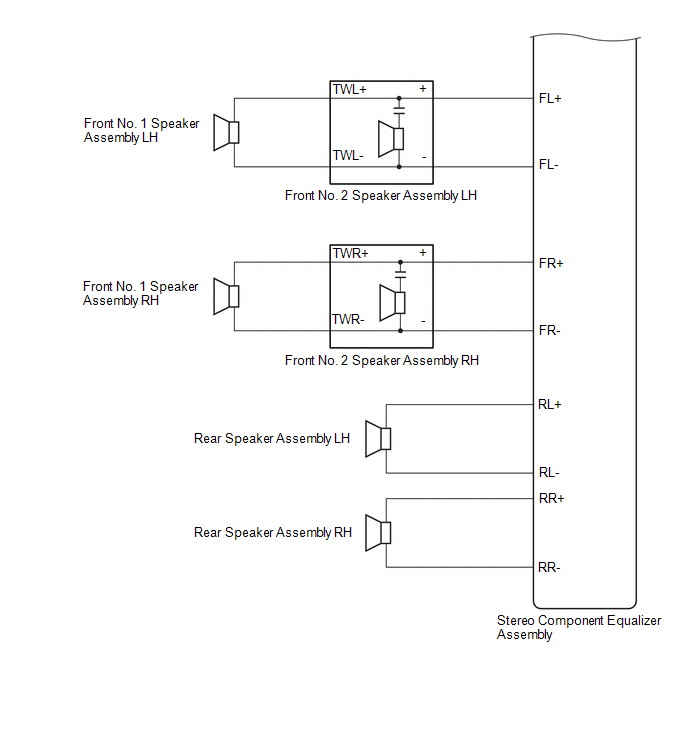

SYSTEM DIAGRAM

    System Description

    SYSTEM DESCRIPTION ACTIVE NOISE CONTROL SYSTEM (a) The active noise control system is a system that detects muffled engine sounds produced in sync that fluctuates according to the engine speed, by using the active noise control microphone and outputs anti-phase control sound through the audio speakers to reduce muffled engine sounds...

    How To Proceed With Troubleshooting

    CAUTION / NOTICE / HINT HINT: Use the following procedure to troubleshoot the active noise control system. *: Use the GTS. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP NEXT 2...
