Toyota Yaris: Tires / Replacing a Tire

Toyota Yaris XP210 (2020-2026) Owner's Manual / Maintenance and Care / Owner Maintenance / Tires / Replacing a Tire

If a tire wears evenly, a wear indicator will appear as a solid band across the tread.

Replace the tire when this happens.

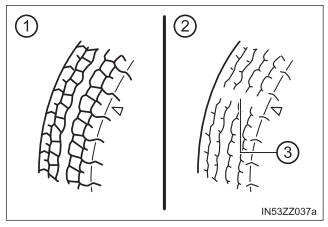

Toyota Yaris. Replacing a Tire

New tread
Worn tread
Tread wear indicator

You should replace the tire before the band crosses the entire tread. With tire pressure monitoring system: After adjusting the tire pressure, initialization of the tire pressure monitoring system is necessary to make the system operate normally.

Refer to Tire Pressure Monitoring System Initialization.

Tires degrade over time, even when they are not being used on the road. It is recommended that tires generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high loading conditions can accelerate the aging process. You should replace the spare tire when you replace the other road tires due to the aging of the spare tire. The period in which the tire was manufactured (both week and year) is indicated by a 4-digit number.

Refer to Tire Labeling.

WARNING

Always use tires that are in good condition

Driving with worn tires is dangerous. Reduced braking, steering, and traction could result in an accident.

Replace all four tires at the same time

Replacing just one tire is dangerous. It could cause poor handling and poor braking resulting in loss of vehicle control. Toyota strongly recommends that you replace all four tires at the same time. If you replace only two tires, the new tires should be installed on the rear of the vehicle.

Tire Rotation

During rotation, inspect them for correct balance. Also, inspect them for uneven wear and damage. Abnormal wear is usually caused by one or a combination of the following: Incorrect tire pressure Improper wheel alignment Out-of-balance wheel Severe braking After rotation, inflate all tire pressures to specification and inspect the lug nuts for tightness...

Temporary Spare Tire

Inspect the temporary spare tire at least monthly to make sure it is properly inflated and stored. The temporary spare tire is easier to handle because of its construction which is lighter and smaller than a conventional tire...
