Toyota Yaris: Dynamic Radar Cruise Control System / Parts Location
PARTS LOCATION

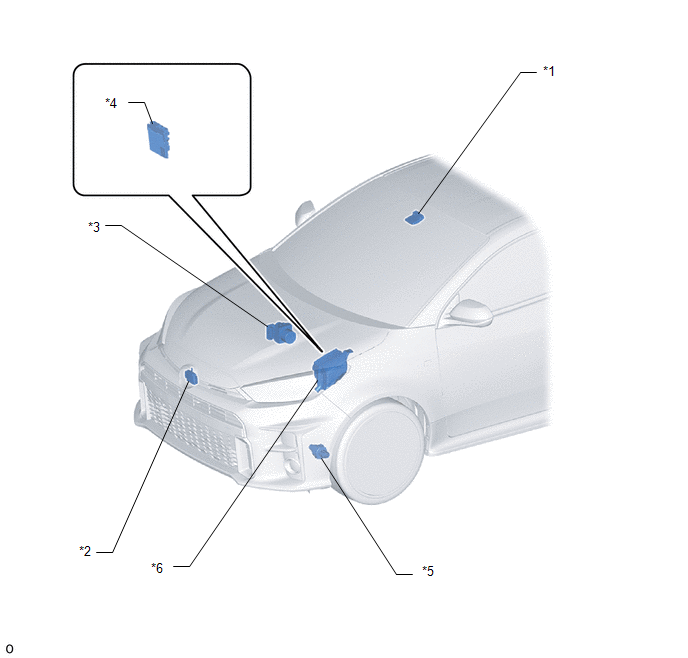

ILLUSTRATION
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU | *4 | ECM |
| *5 | NEUTRAL POSITION SWITCH | *6 | ENGINE ROOM RELAY BLOCK - ECU IGP NO. 3 FUSE |

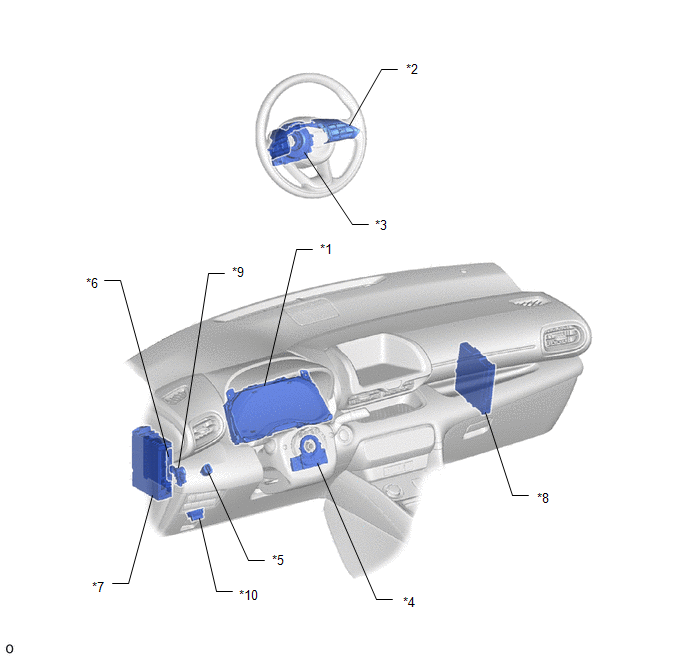

ILLUSTRATION
| *1 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - CRUISE CONTROL INDICATOR - CRUISE SET INDICATOR - WARNING BUZZER | *2 | STEERING PAD SWITCH ASSEMBLY - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING SENSOR |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU IGR NO. 1 FUSE - ECU IGR NO. 2 FUSE - STOP FUSE | *8 | ENGINE STOP AND START ECU |
| *9 | CLUTCH PEDAL STROKE SENSOR ASSEMBLY | *10 | DLC3 |
Precaution
PRECAUTION HANDLING PRECAUTION FOR DYNAMIC RADAR CRUISE CONTROL SYSTEM Keep in mind the following points when servicing vehicles equipped with the dynamic radar cruise control system...
System Diagram
S..
