Toyota Yaris: Smart Key / Operational Range
The system operates only when the driver is in the vehicle or within
operational range while the key is being carried.
Starting the Engine

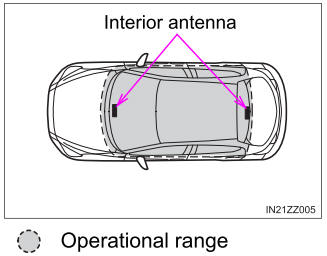

With the advanced keyless function
![Toyota Yaris. Operational Range](images/operational_range-61/1/toyota_yaris_operational_range_79.jpg)

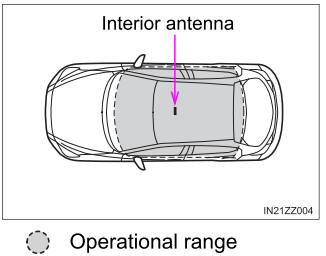

Without the advanced keyless function
![Toyota Yaris. Operational Range](images/operational_range-61/1/toyota_yaris_operational_range_80.jpg)
Operation indicator light
Operation buttons
The operation indicator light
flashes when the buttons are
pressed.
Lock button
To lock the doors and the liftgate, press the lock button and
the hazard warning lights will
flash once...
If a key is left in the vehicle, the functions of the key left in the vehicle
are temporarily suspended to prevent theft of the vehicle.
To restore the functions, press the unlock button on the functions-suspended
key in the vehicle...
