Toyota Yaris: Noise Filter / Installation

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Audio & Visual & Telematics / Audio / Video / Noise Filter / Installation

INSTALLATION

PROCEDURE

1. INSTALL RADIO SETTING CONDENSER

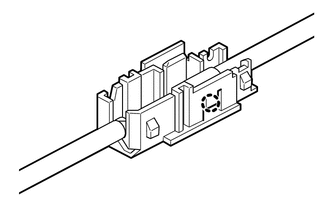

(a) Engage the claw to install a new terminal cover to the wire harness.

NOTICE:

  • Make sure to hold the crimping side of the terminal when installing the wire harness to the terminal cover.
  • Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.
  • Do not use excessive force when inserting the wire harness into the terminal cover.
  • If the terminal cover has been deformed during installation, replace the terminal and terminal cover with new ones.

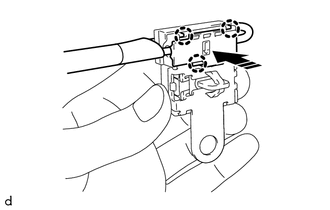

(b) Engage the claws to install the new terminal cover with wire harness to a new radio setting condenser as shown in the illustration.

Install in this Direction

NOTICE:

  • Do not use excessive force when inserting the terminal covers into the condenser.
  • If a terminal cover has been deformed during installation, replace the terminal, terminal covers and radio setting condenser with new ones.

(c) Engage the clamp to install the radio setting condenser with wire harness.

(d) Install the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

Click here
