Toyota Yaris: Side Airbag Sensor (for Front Door) / Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
PROCEDURE
1. INSTALL SIDE AIRBAG PRESSURE SENSOR
(a) Check that the ignition switch is off.
(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.

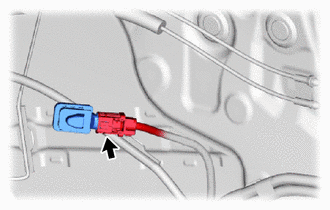

| (c) Connect the airbag connector. NOTICE: When connecting any airbag connector, take care not to damage the airbag wire harness. HINT: Refer to How to Connect or Disconnect Airbag Connector: Click here
|
|

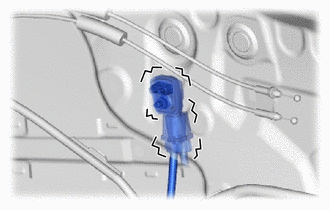

| (d) Engage the claw to hold the side airbag pressure sensor in place. |
|

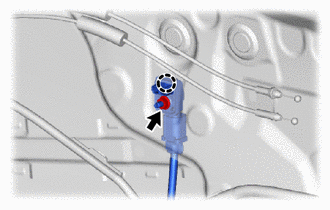

(e) Install the side airbag pressure sensor with the nut.
Torque:
7.8 N·m {80 kgf·cm, 69 in·lbf}
NOTICE:
- If the side airbag pressure sensor has been dropped, replace it with a new one.
- When installing the side airbag pressure sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
| (f) Check that there is no looseness in the installation parts of the side airbag pressure sensor. |
|
2. INSTALL FRONT DOOR SERVICE HOLE COVER
Click here
3. INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP
Click here
4. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
5. INSTALL FRONT DOOR TRIM GARNISH
Click here
6. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)
Click here
7. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)
Click here
8. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here
9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
11. PERFORM DIAGNOSTIC SYSTEM CHECK
Click here
12. CHECK SRS WARNING LIGHT
Click here
