Toyota Yaris: Blower Unit / Installation

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Interior / Heating / Air Conditioning / Blower Unit / Installation

INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL BLOWER ASSEMBLY

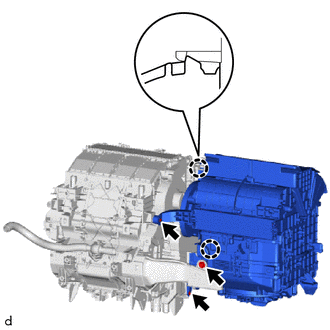

(a) Engage the claws to install the blower assembly.

mostbet casino

(b) Install the 3 screws.

2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

Click here

3. INITIALIZATION SERVO MOTOR

Click here

Reassembly

REASSEMBLY PROCEDURE 1. INSTALL CLEAN AIR FILTER (a) Install the clean air filter. NOTICE: Make sure that the "UP" mark is facing the correct direction before installing the clean air filter...
