Toyota Yaris: Can Communication System / Headup Display Communication Stop Mode

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Power Source & Network / Networking / Can Communication System / Headup Display Communication Stop Mode

DESCRIPTION

Detection Item	Symptom	Trouble Area
Headup Display Communication Stop Mode	Communication stop for "Head Up Display" is indicated on the "Communication Bus Check" screen of the GTS. Click here	Meter mirror sub-assembly branch line or connector Power source circuit of meter mirror sub-assembly Meter mirror sub-assembly ground circuit Meter mirror sub-assembly

Detection Item

Symptom

Trouble Area

Headup Display Communication Stop Mode

Communication stop for "Head Up Display" is indicated on the "Communication Bus Check" screen of the GTS.

Click here

Meter mirror sub-assembly branch line or connector
Power source circuit of meter mirror sub-assembly
Meter mirror sub-assembly ground circuit
Meter mirror sub-assembly

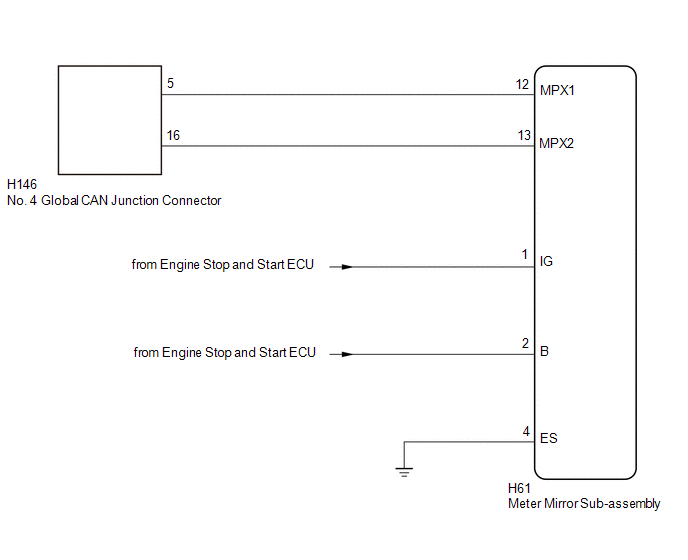

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.
Click here
Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
Some parts must be initialized and set when replacing or removing and installing parts.
Click here
After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.
Click here

HINT:

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.	CHECK FOR OPEN IN CAN BUS LINES (METER MIRROR SUB-ASSEMBLY BRANCH LINE)

(a) Disconnect the cable from the negative (-) auxiliary battery terminal.

(b) Disconnect the meter mirror sub-assembly connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
H61-12 (MPX1) - H61-13 (MPX2)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

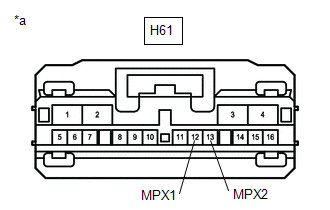

*a	Front view of wire harness connector (to Meter Mirror Sub-assembly)

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (METER MIRROR SUB-ASSEMBLY)

2.	CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
H61-4 (ES) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

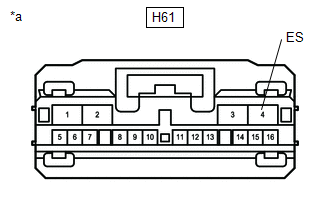

*a	Front view of wire harness connector (to Meter Mirror Sub-assembly)

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

3.	CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Reconnect the cable to the negative (-) auxiliary battery terminal.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
H61-2 (B) - Body ground	Ignition switch off	10.5 to 16 V
H61-1 (IG) - Body ground	Ignition switch ON	10.5 to 16 V

*a	Front view of wire harness connector (to Meter Mirror Sub-assembly)

REPLACE METER MIRROR SUB-ASSEMBLY

GO TO STOP AND START SYSTEM (BACKUP BOOST CONVERTER CIRCUIT)
