DIAGNOSIS SYSTEM

DIAGNOSIS FUNCTION

(a) The diagnosis function turns off the cruise control indicator and displays a warning message when a malfunction is detected. When a malfunction is detected in the dynamic radar cruise control system, DTCs are stored in the ECM or millimeter wave radar sensor assembly.

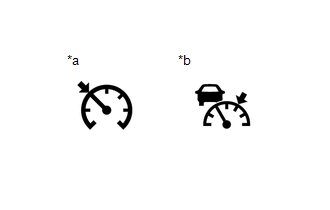

*a

Cruise Control Indicator

(Constant Speed Control Mode)

*b

Cruise Control Indicator

(Vehicle-to-vehicle Distance Control Mode)

NOTICE:

As data stored in the ECU will be cleared, do not remove any fuses or disconnect the cable from the negative (-) auxiliary battery terminal before the inspection is complete.

HINT:

When the system returns to normal, the warning message "Cruise Control Malfunction Visit Your Dealer" displayed on the multi-information display will be cleared.

    Terminals Of Ecu

    TERMINALS OF ECU CHECK ECM HINT: The standard voltage, resistance and waveform between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated...

    Dtc Check / Clear

    DTC CHECK / CLEAR CHECK DTC (a) Check for DTCs (Test Failed / Pending / Confirmed). Powertrain > Radar Cruise1 > Trouble Codes Powertrain > Radar Cruise2 > Trouble Codes Radar Cruise1: Stored in the ECM Radar Cruise2: Stored in millimeter wave radar sensor assembly GTS Display Description Test Failed Represent malfunctions that were detected during the current trip...
